Part 1: Control Cards

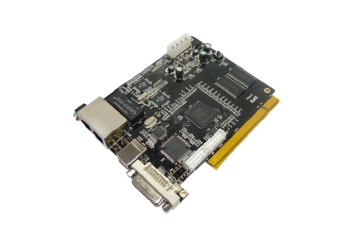

Linsn sending card
installed in PC motherboard sending data to LED display

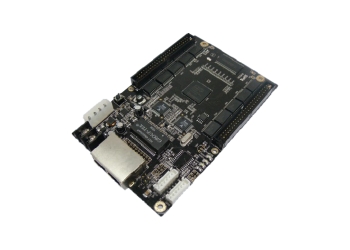

Linsn receiving card
installed inside cabinet receiving data

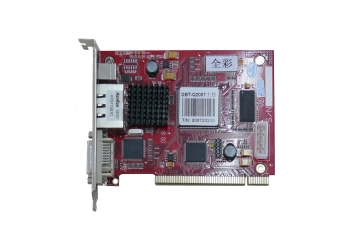

DBstar sending card
installed in PC motherboard sending data to LED display

DBstar receiving card
installed inside cabinet receiving data



Zdec sending card
installed in PC motherboard sending data to LED display

Zdec receiving card
installed inside cabinet receiving data



Lytec control card
installed inside cabinet control LED display

Xixun control card
installed inside cabinet control LED display



Graphic card
control display mode

Transfer card
inserted receiving card to distribute data



Part 2: Wire Rods



RJ45 internet cable
connect led display with sending card, transfer data

USB cable
connect sending card with PC board



DVI calbe
connect DVI and sending card

VGA cable
connect VGA and sending card



Power cable and internet cable with flight connector
connect cabinets

Three core wire
connect AC220V with LED display





Module flat cable
connect modules transfer data

Flat cable in cabinet
transfer data from transfer card to modules





Power supply cable
connect cabinets

Power supply cable
connect power supply with modules



Part 3: Erecting Tools



M4X10MM screw
fix modules to cabinets

Hexagon socket head cap screw
M10X60 & M10X25, connect with brace, fix cabinet



Brace
①Z board:120×80②flat board:120×120③flat board:120×60

Multimeter
test current and resistance



Open spanner
Installation tool

Hexagon spanner
Installation tool





Cabinet key
open and close cabinet backdoor

Screwdriver
Installation tool





①Hanging beam②footing beam
hang LED display

Steel Truss
hanging rental LED display



Part 4: Products and Components



LED display module
cabinet composition

LED display cabinet
LED screen composition



LED display power supply
instaledl inside cabinet, transfer AC220V to DC 5V

LED display cabinet Fan
installed inside the cabinet to dissipate heat



Part 5: Peripheral Equipment



IPC
control LED display

Video processor
connect with all kinds of signal sources and process video



Video Splitter
instaledl inside cabinet, transfer AC220V to DC 5V

Distribution box
power up LED display
