• VP-I3 Indoor Full Color LED Display
  • Type:Indoor Full Color Display
  • Model:VP-I3
  • Hits:21552
  • Available applications:
    In
    door advertising, billboards,
    Information Display and so on

    Project Case>>>

verypixel i3 indoor led display modules

Tag: P3 indoor led modules, P3 SMD led display, indoor SMD led video wall

P3 indoor LED display Products’ function advantages
>> High definition and could be adjusted, so it can meet the request of the customers according the application environments.
>> Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
>> To picture, video and character, have clear, exquisite and real display effects.
>> Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion.
>> Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 150-200mcd 120º/120º 620-630nm 25℃,20mA
Green LED 260-330mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 55-65mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

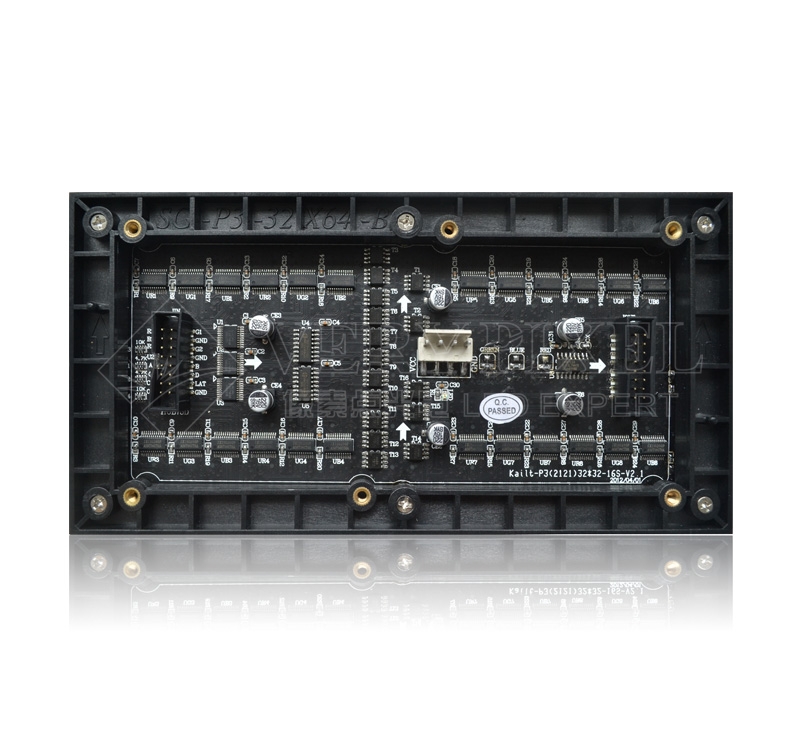

Pixel Pitch 3mm  P3 Indoor Full Color LED module
Pixel Configuration 1R1G1B SMD2020 3in1
Module Resolution 32dots*64dots for real
Module Pixels 2048 dots
Module Size 96mm*192mm
Module Weight 0.5KG



Cabinet Parameters

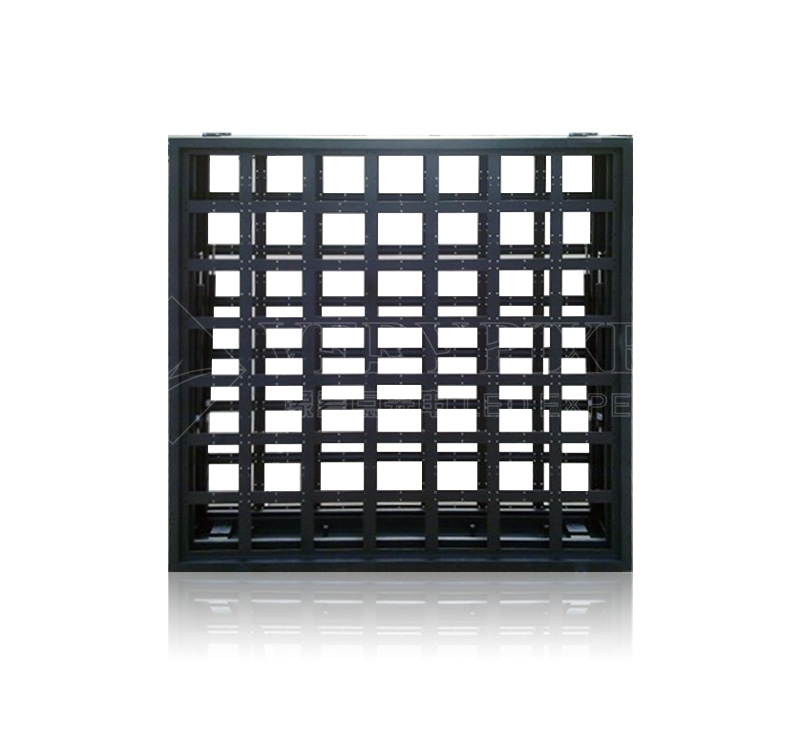

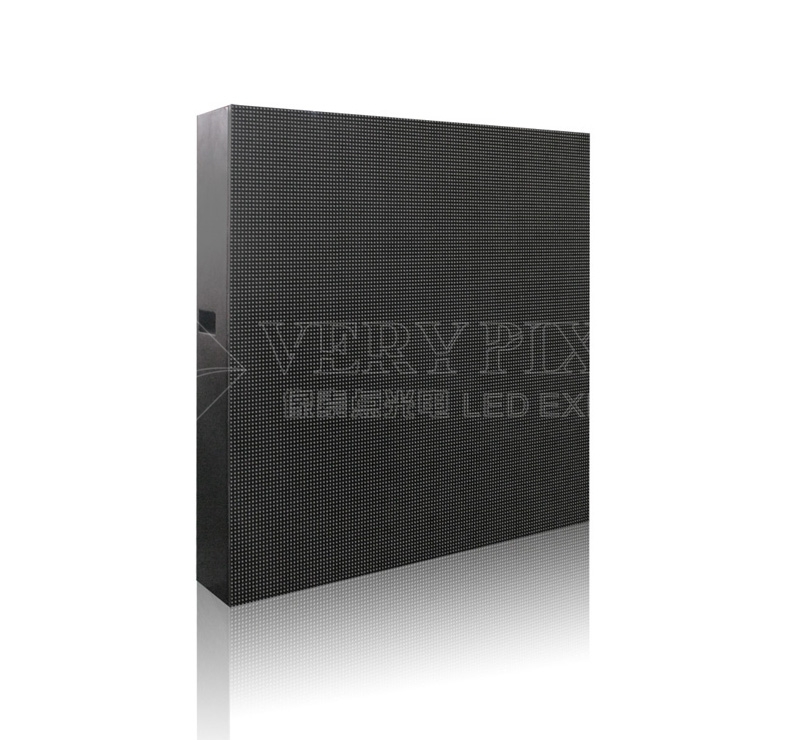

Cabinet Size(W*H*D) 768*768*160(mm) or Customized  P3 Indoor Full Color LED Display screen cabinet
Cabinet Resolution 256dot*256dot for real
Module Quantity 32 pcs
Cabinet Pixels 65536 dots
Pixel Density 111111 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 30KG for iron cabinet;
20KG for aluminum cabinet



Screen Parameters

Brightness ≥1800cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method 1/16 scan constant current
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 3m to 50m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤50kg/sqm for Iron cabinet /35kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating ﹣40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
