Product Features












>  With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.



>  RGB deep gray processing to show any color; Support point correction function, ensure the consistency of the color and the brightness in the process of use.



>  Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.



>  Front access design allows making any LED panel available from front side, Maintenance simple and quick.

>  With the protection rating of IP65, face any bad weather.



>  With the professional aviation plug as the connectors ensure the quality and safety.



>  With the high quality raw material、 mature process and scale production, the quality is ensured.



>  Complete series, customized to satiny any requirements of customers.

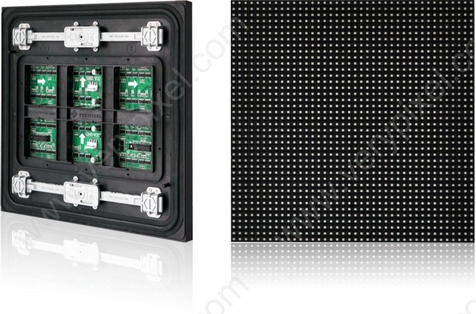

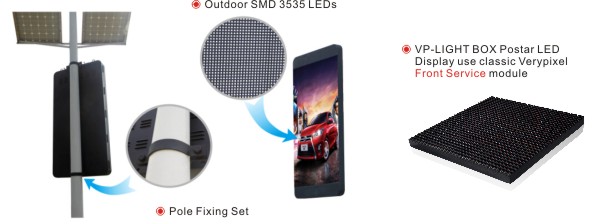

Product Structure







Postar_LED_Display_Structure







 Postar_LED_Display_Structure

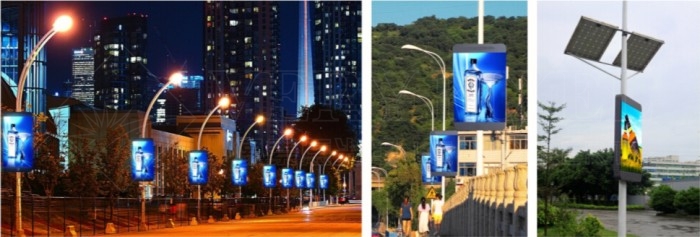

Product Case









Product Line




Model VP-LB-O6.6SMD VP-LB-O8SMD VP-LB-O10SMD
Pitch 6.6mm 8mm 10mm
Pixel Component SMD 2020 SMD 3535 /color SMD 3535
Module Size 320*320mm 320*320mm 320*320mm
Module resolution 48*48 dots 40*40 dots 32*32 dots
Viewing Angle 120°(H)/ 120°(V) 120°(H)/ 120°(V) 120°(H)/ 120°(V)
Max. Power 550W/sqm 550W/sqm 550W/sqm
Avg. Power 180W/sqm 180W/sqm 180W/sqm
Brightness ≥6500cd ≥6000cd ≥6000cd
Refresh Rate ≥1000Hz ≥1000Hz ≥1000Hz
IP Level IP65 IP65 IP65



light box led sign


Simplicity is hidden complexity

Outdoor Full Color LED Advertising Light Box Screen


light box LED screen | outdoor lightbox screen | light box display | LED station sign | LED advertising player

Verypixel is proud of being your project resource for outdoor Light Box LED Sign and looks forward to serving you.

Outdoor Full Color Light Box Sign also called street video box, street LED sign or led station lightbox screen, with the high reliability and flexibility is applied for outdoor LED Advertising.

● They can play video, picture, animation, text and etc, combining static or dynamic display to attract more eyes.

The use of LED advertising light box screen signifies a brand new stage of development in the area of outdoor advertising.

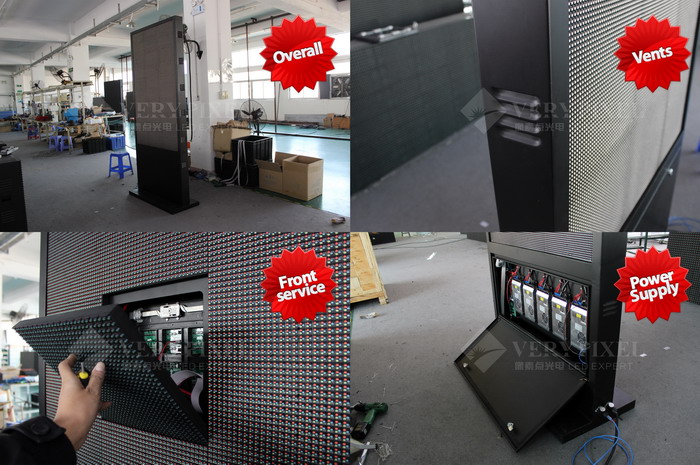

detail_of_verypixel_led_lightbox_display

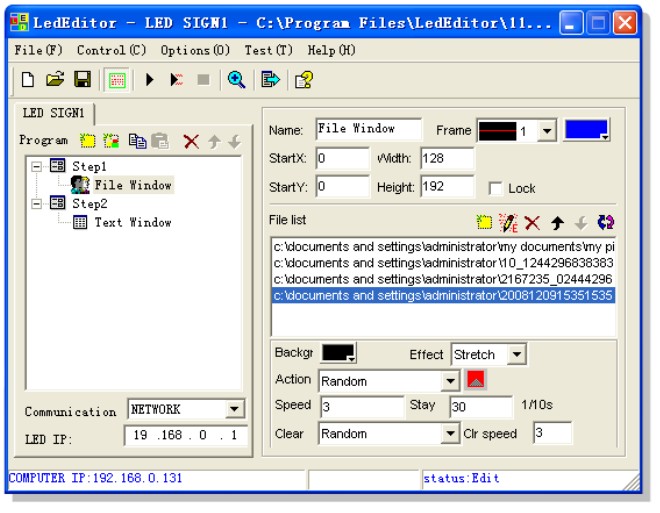

Powerful Control Software of LED Light Box Screen



> LED Editor is a Windows application program designed for the LED video screen. The main function of LedEditor is a media program editor/manager and a media player. It supports almost all media file formats that can be displayed in the windows environment.

> With the DirectX technology, the software can display media smoothly and avoid flicker phenomena. We use good graphical operation interface as below, what you see what you get, very user-friendly.

led editor

LED Light Box Display Visibility in All Conditions



 Outdoor Full Color LED Advertising Light Box Screen
> Larger viewing angle Horizontal 110 degree, vertical 110 degree. Original and vivid display effect will be seen in this scope with color excursion free and image distortion free.

> 5000cd/m2 brightness can be installed in different environment. Energy-saving and Environmental friendly design.

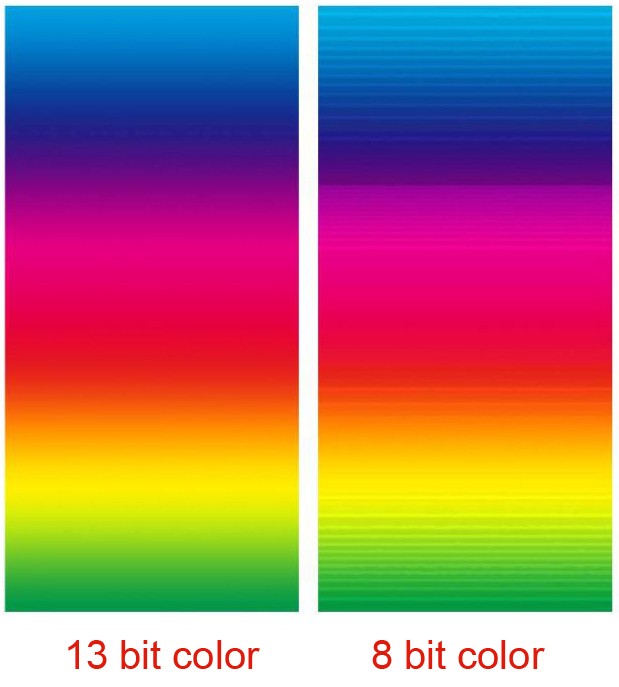

> Adopt advanced 13bit technology to realize more nature color displayed.

> High refresh Rate 1000HZ, make good image illumination uniformity, nature color transitions reliability, stability and excellent consistency of signal output, without mosaic.

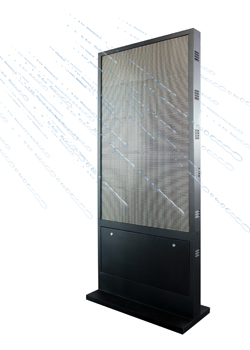

IP65 Protection Class of Light Box LED Sign


 Outdoor Full Color LED Advertising Light Box Screen
> Double-layer casing structures for good heat insulation. PC Cover for resisting the ultraviolet radiation .The outside layer with the IP65 cabinets design, total waterproofed casing with fans inside, high IP level to prevent Inside cabinet from sunlight shining directly.

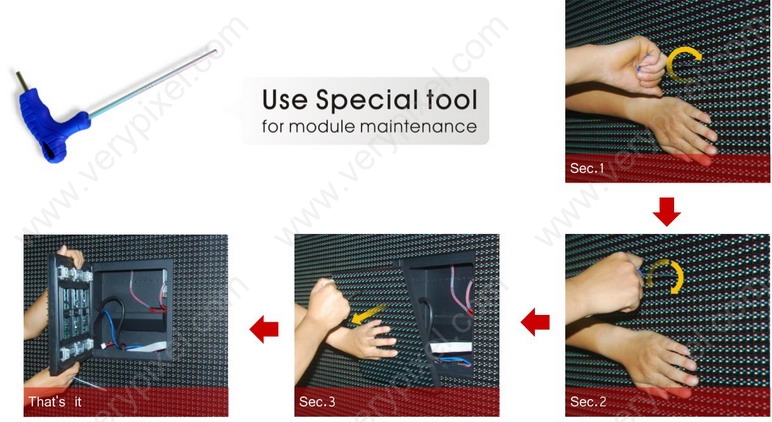

Easy Maintenance of outdoor LED advertising player

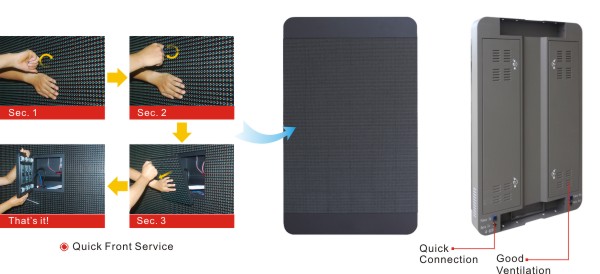

Front Service Display

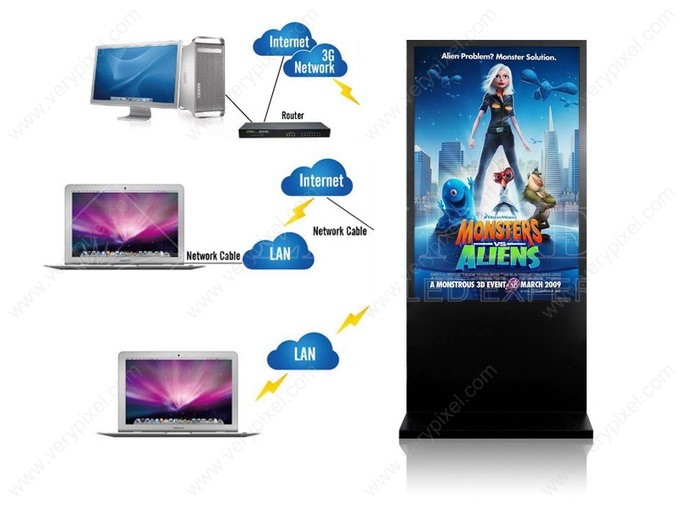

Multiple Connectivity of LED Station Display



Outdoor Full Color LED Advertising Light Box Screen



Light box LED Sign Specifications



ITEMS MAIN TECHNICAL DATA
Pitch 8mm
Pixel Organization 1R1G1B /color
Color Depth 13 bit/color
LED Type SMD 3535 3 in 1
Viewing Angle 110°(H)/ 110°(V)
Brightness Approx. 5000cd/m2
Resolution Screen H200*W120pixels
Playing Software Video display software LED Editor
Working Method Synchronously working with computer or USB flash drives
Dimming Control 16 levels-auto, 256-software
Scan Mode 1/5 duty
Display Refresh Rate above 800 HZ
Out-of-control Pixel ≤0.1‰
Display Area H1600mm*W960mm
Casing Size H 2450mm*W1050mm*D250mm
Casing Material & Surface Color Powder coated steel with front service
Waterproof Level IP65 front & rear
Working Voltage AC 110V or 220V, 50 to 60HZ
Working Environment -20°C to +60°C, 10% to 95%RH
LED Life Span 100,000hours
