• VP-I5 Indoor Full Color LED Display
  • Type:Indoor Full Color Display
  • Model:VP-I5
  • Hits:18530
  • Available applications:
    In
    door advertising, billboards,
    Information Display and so on

    Project Case>>>



Tag: indoor led video wall, P5 indoor SMD led modules, P5 SMD led screen

With 40000dots per square meters of Indoor Full color LED Display panel PH5, of which the pixel size is 5mm. The grayscale of each is 16384, and 16,777,216 kinds of colors in total. Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation; cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system. On the other hand, LED panel can display text, pictures, animation as well as video.



Competitiveness are as follows
>> Price Competitiveness: we have the most competitive price at the market; also have the same even better quality.
>> Performance Competitiveness: Best Equality, high consistency, big viewing angle, can repair each led lamps.
>> Quality Competitiveness: From material to finished product, from design to production, we control all steps and every detail, which are the guarantee of the quality and reliability.
>> Service Competitiveness: Better service at same situation, better cooperation at same service.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 150-200mcd 120º/120º 620-630nm 25℃,20mA
Green LED 260-330mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 55-65mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

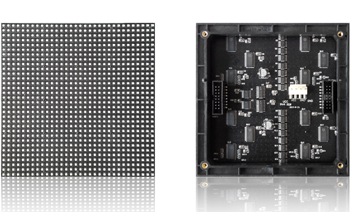

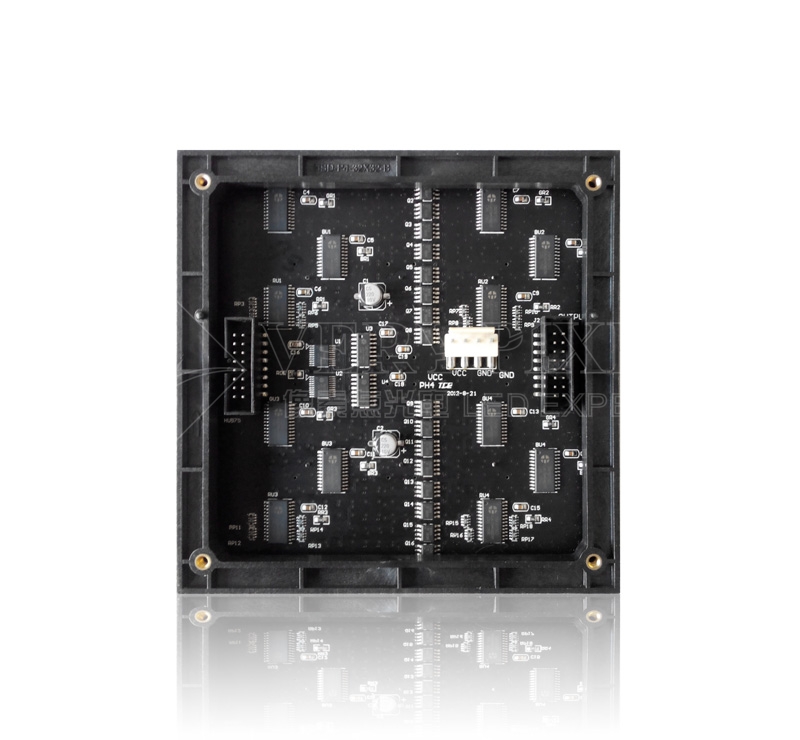

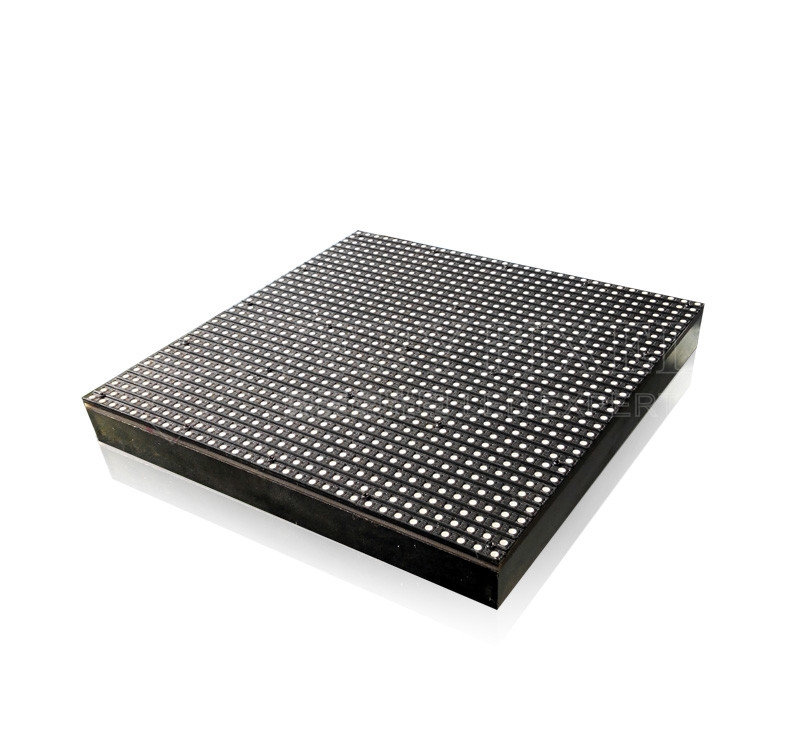

Pixel Pitch 5mm  p5 Indoor Full Color LED Display modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 32dots*32dots for real
Module Pixels 1024 dots
Module Size 160mm*160 mm
Module Weight 0.55KG



Cabinet Parameters

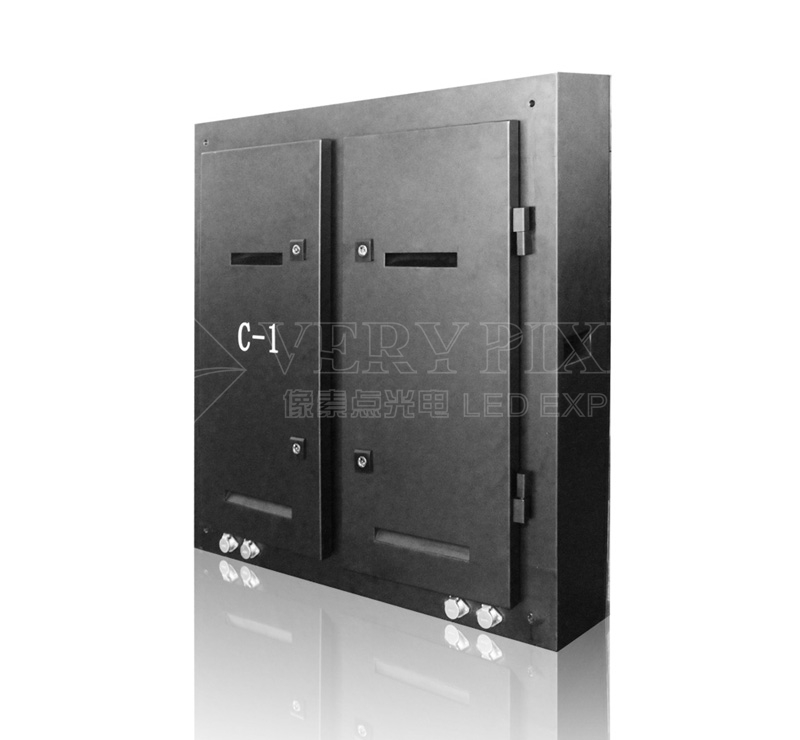

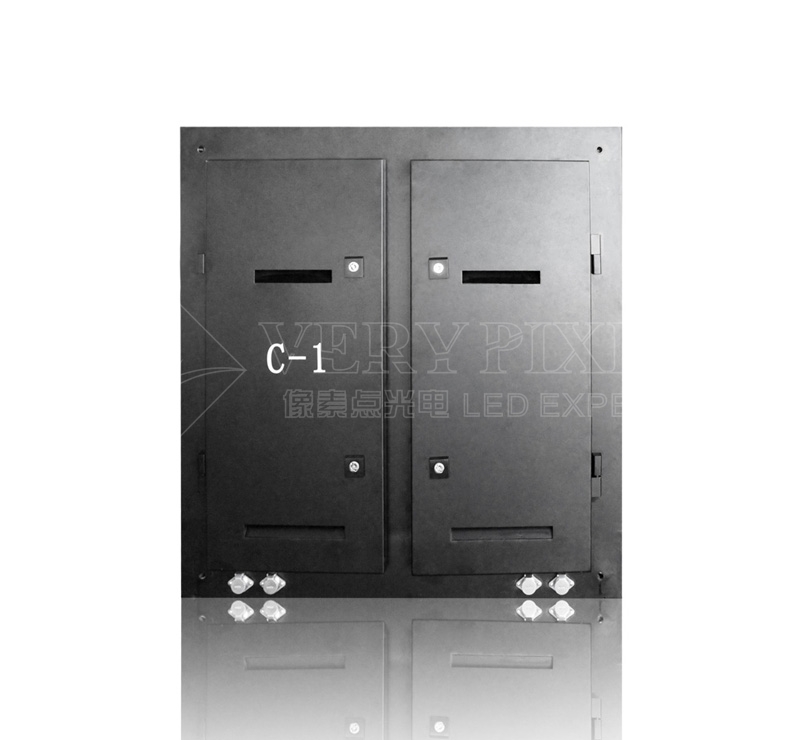

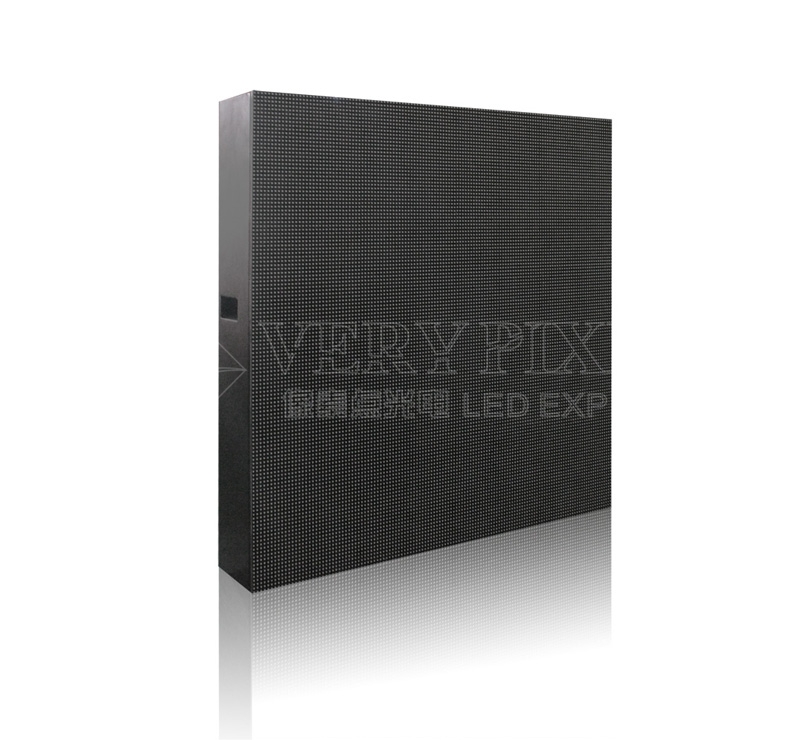

Cabinet Size(W*H*D) 640*640*160(mm)  p5 Indoor Full Color LED sign cabinet
Cabinet Resolution 128dot*128dot for real
Module Quantity 16 pcs
Cabinet Pixels 16384 dots
Pixel Density 40000 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 32.5KG for iron cabinet;
21KG for aluminum cabinet



Screen Parameters

Brightness ≥2000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 4m to 55m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤50kg/sqm for Iron cabinet /35kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP45
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
