• VP-Diamond Series
  • Type:Rental LED Display
  • Model:VP-Diamond Indoor
  • Hits:11927
  • Available applications:
    Indoor rental, information display
    stage background and so on.

Tag: rental led display indoor, Die-casting Cabinet led screen, led rental video wall indoor

Product Vedio



Product Features





Light weight: The aluminum die-casting technology makes the single cabinet as light as 7.8KG.
Easy to maintain: The modularization design makes disassembly easy and each cabinet can be withdrawn from the entire screen individually.
Low power consumption: The low power-consuming LED lamp with high brightness can save energy by as much as 20%. Combined with the brightness auto-adjusting technology and PFC power supply,the whole body can save energy by over 35%, which in other words is to save money.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
High reliability: Dual-signal, dual-power and system redundancy backup guarantee the reliable performance.
Seamless assembly: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach±0.05mm so as to achieve seamless assembly.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

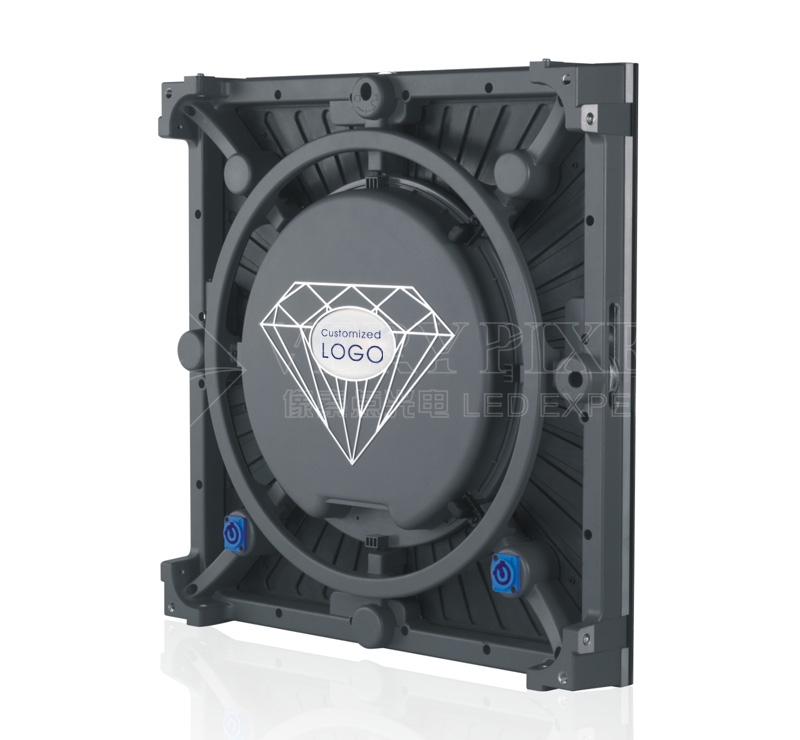

Cabinet Structure


die -casting led screen indoor




Product Parameters

 LED Encapsulation

 Black SMD 1514

 Black SMD 2724

 Black SMD 2724

 Black SMD 3528

 Pixel Pitch

 2.9mm

 3.9mm

 4.8mm

 5.2mm

 Module Resolution(W*H)

 172* 172

 128* 128

 104* 104

 96* 96

 Pixel Configuration

 1R1G1B(3 in1)

 Pixel Density

 118336 pixel/sqm

 65536 pixel/sqm

 43264 pixel/sqm

 36864 pixel/sqm

 Driving Method

 1/15 Scan

 1/16 Scan

 1 /13 Scan

 1/8Scan

 Refresh Frequency

 >2880Hz(Supporting high refresh rate and depending on system configuration)

 Driving IC

 Special constant current IC with high refresh rate and high gray scale

 Grey Scale

 >14BIT(According to system and IC equipped)

 Module Size

 500mm*500mm

 White Balance Brightness

 >800cd/sqm

 >800cd/sqm

 >800cd/sqm

 >800cd/sqm

 Color Temperature

 8000K ± 500(adjustable)

 Viewing  Angle

 Horizontal  Angle 140°     Vertical  Angle 120°

 Optimal Viewing Distance

 >3m

 >4m

 >5m

 >6m

 Working Voltage

 AC 220V±10%

 Max Power Consumption

 100W/pcs

 100W/pcs

 120W/pcs

 150W/pcs

 Avg Power Consumption

 50W/pcs

 50W/pcs

 60W/pcs

 80W/pcs

 Lifetime

 50000 Hours

 Operating Temperature

 -10°C to 65°C

 Net Weight

 7.8Kg/pcs
