Tag: led taxi topper sign, led taxi roof display, led taxi sign,led taxi top, taxi roof signs, taxi top signs, taxi roof advertising, taxi top advertising signs, taxi cab, front maintenance taxi led display


led taxi topper sign,led taxi roof display
VP-TAXI LED Taxi Topper Sign

VERYPIXEL LED Taxi Topper Sign




>> VP-TAXI series LED taxi topper sign, designed for led taxi roof display, adopting sheet metal fabrication, by multiple anti-rusting, spraying processes and high-temp baking procedure which ensuring anti-rust; protective cover removable, making it possible for easy maintenance; fasteners and mounting brackets, enabling fast assembly.

>> Taxi top advertising signs are suitable for outdoor usage, adopting aluminum sheet metal,and endowed with excellent anti-rust effect by virtue of electrostatic spraying process. Actual dimensions could be customized.

>> Verypixel unique front access modules are perfect suitable for led taxi topper sign. There are Outdoor HD P5SMD and P6SMD two specifications products on sale.

>> LED taxi roof display use the same modules as VP-Fastile series, which is more efficient in maintenance compared to conventional led taxi topper sign.  Moreover, the image shows the effect and brightness in outdoor SMD products also belong to world class.



Product Video

 Function Demo  Display Effect

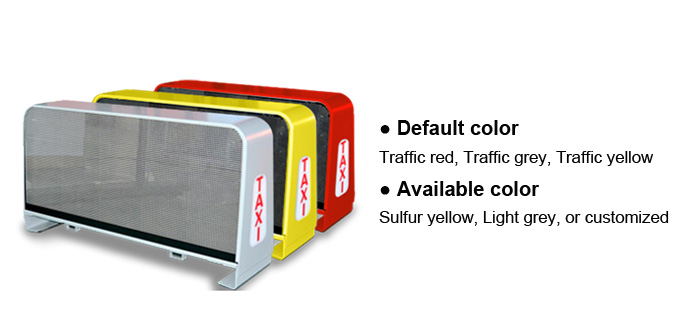

Cabinet Color

p5_outdoor_led_taxi_roof_display

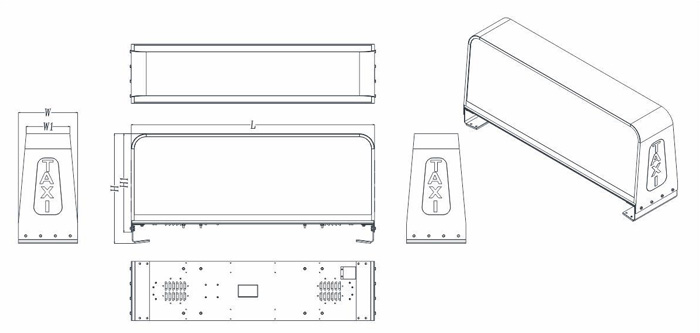

Cabinet Structure

led_taxi_topper_sign_structure



Cabinet Model Module Model L(mm) H(mm) W(mm) H1(mm) W1(mm)
VP-TX5 Pitch5 985 444 240 398 177
VP-TX6 Pitch6 985 508 240 462 166


Note: above dimensions are standard size recommendation. Actual sizes shall be subject to changes as per vehicle types. With demands on special mounting way, vehicle sizes and photos might be needed in advance.

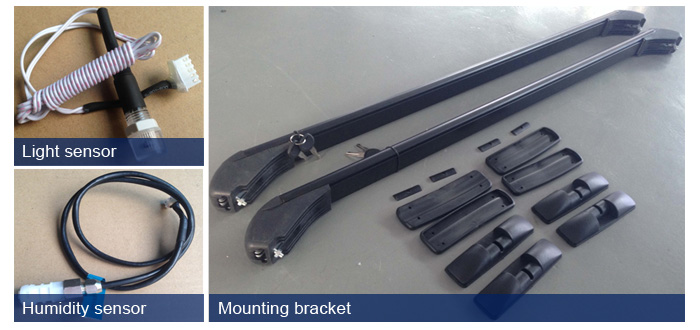

Optional Components

led taxi topper sign optional components

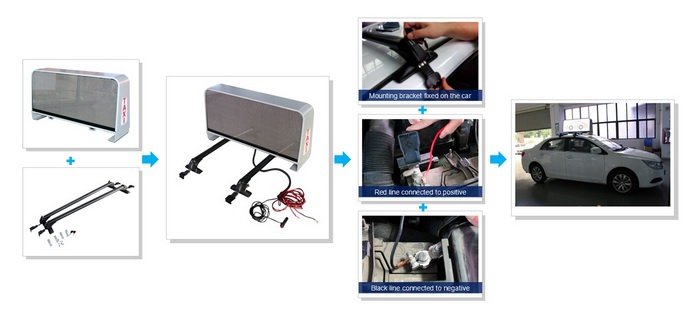

Installation Drawing

led taxi topper sign installation

Note: sizes of mounting brackets depend on specific vehicles. Verypixel can also provide other corresponding mounting ways as per different car models.

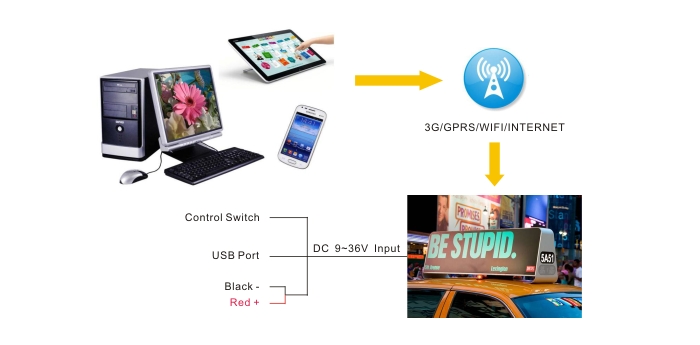

System Topology

led taxi roof display system topology



Technical Parameters



Screen Model VP-TX5 VP-TX6
Pixel Pitch 5mm 6mm
Visual size 960 mm*320 mm 960 mm*384 mm
Size 985 mm*444 mm 985 mm*508 mm
Weight 22KG/PCS 25KG/PCS
Resolution 192*64 dots 160*64 dots
Max. Power Consumption 520W/m2 480W/m2
Brightness >5,000 CD/m2 >4,500 CD/m2
Refreshing Frequency >800 Hz >1,000 Hz
