• VP-O10 outdoor full color 1R1G1B LED Display
  • Type:Outdoor Full Color Display
  • Model:VP-O10
  • Hits:14488
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

    Project Case>>>



Tag: P10 outdoor full color 1R1G1B LED Display, P10 full color led billboards, P10 outdoor led billboard

We provide A-to-Z service LED DISPLAY systems and solutions, from initial planning, design concept, application mock up, production, installation, testing, training to maintenance. Maintaining the highest standards of design and quality, we develop tailor made solutions to each visual scenario presented to us.

Product Features

Compare to new-born SMD LED display series, main advantages of DIP series are as follows
>> P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice.
>> High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance.
>> Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 300-500mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA

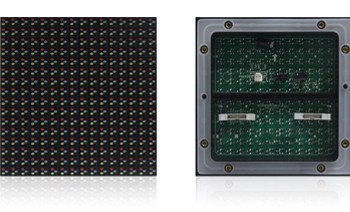

Module Parameters

Pixel Pitch 10mm  P10 outdoor full color 1R1G1B LED modules
Pixel Configuration 1R1G1B
Module Resolution 16dots*16dots for real
Module Pixels 256 dots
Module Size 160mm*160mm
Module Weight 0.7KG

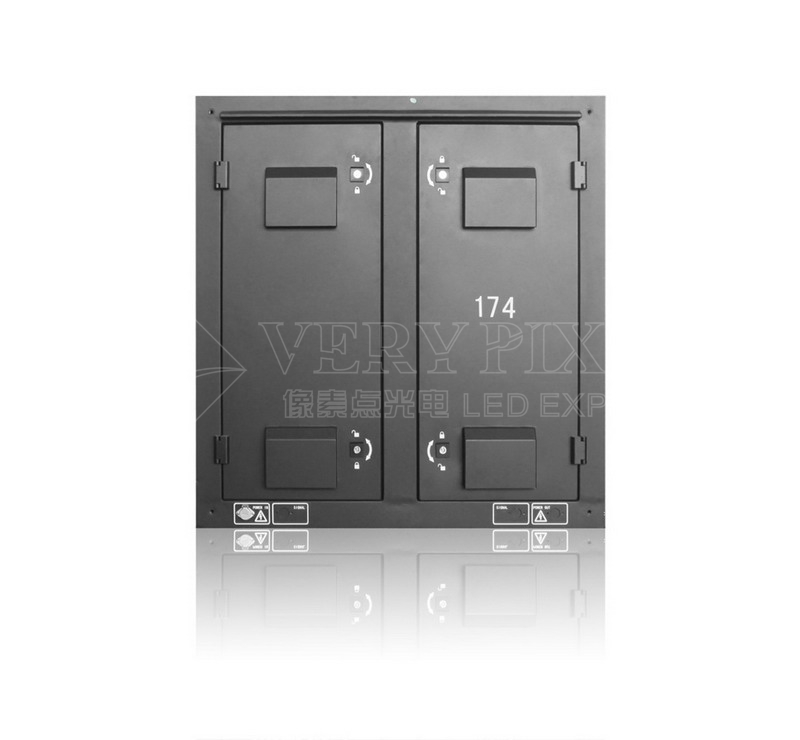

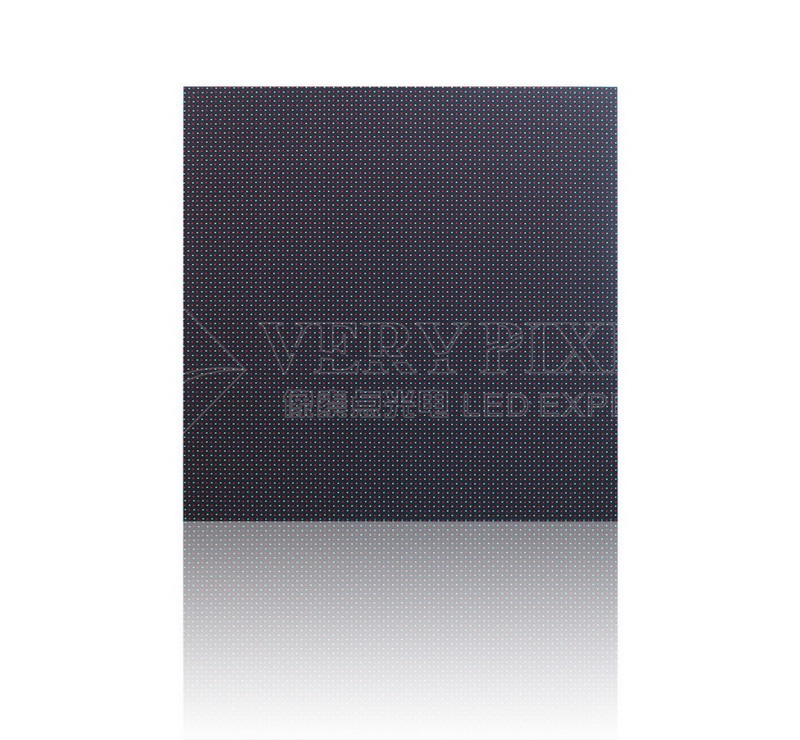

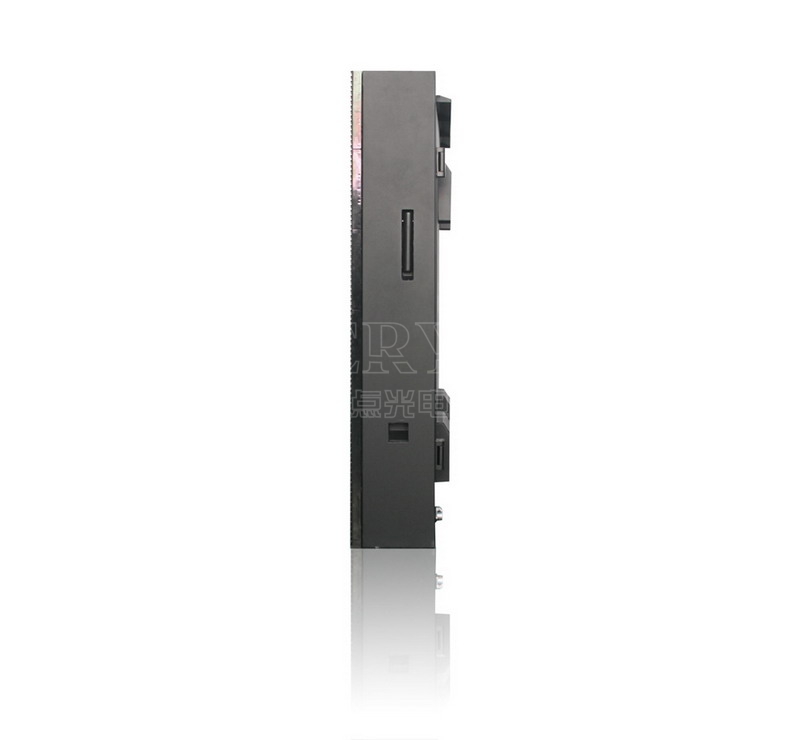

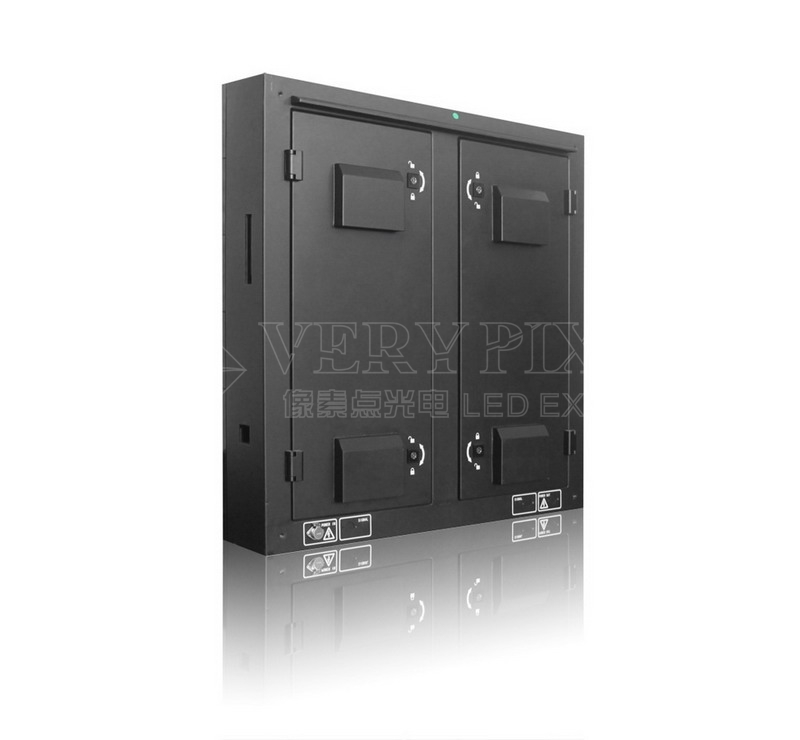

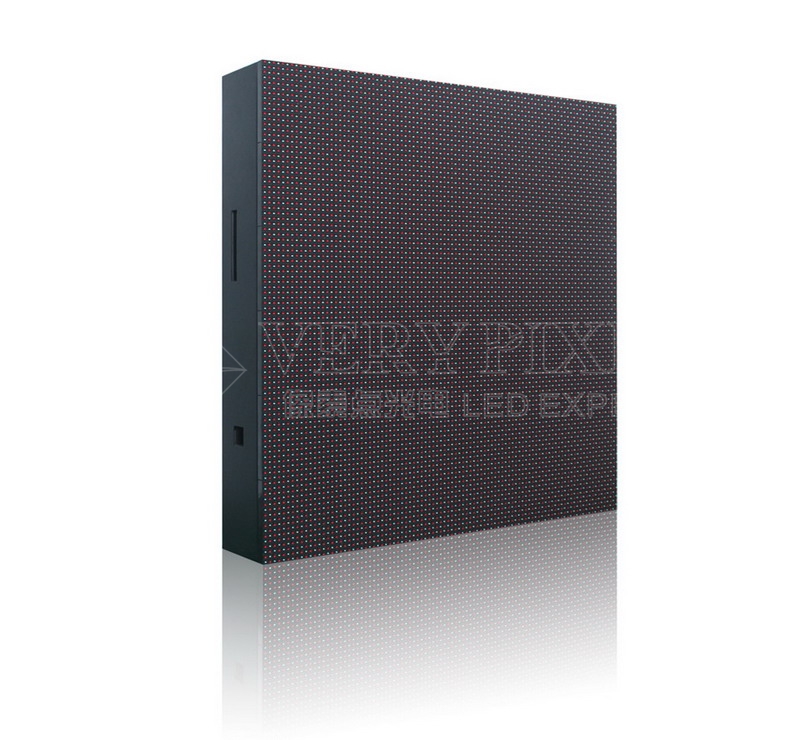

Cabinet Parameters

Cabinet Size(W*H*D) 960*960*160(mm) or customizable  P10 outdoor full color 1R1G1B LED screen
Cabinet Resolution 96dot*96dot for real
Module Quantity 36 pcs
Cabinet Pixels 9216 dots
Pixel Density 10000 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 65KG for iron cabinet;
45KG for aluminum cabinet



Screen Parameters

Brightness ≥5500cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 10m to 100m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
