• VP-O25 outdoor full color 2R1G1B LED Display
  • Type:Outdoor Full Color Display
  • Model:VP-O25V
  • Hits:2318
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

    Project Case>>>



Tag: P25 outdoor full color 2R1G1B LED Displays,P25 full color led video wall,P25 outdoor led displays,P25 full color 2R1G1B modules

P25 outdoor full color 2R1G1B LED display: Why Virtual Pixel? As for a milestone for VERYPIXEL, VIRTUAL PIXEL DESIGN is another contribution to this industry.

Product Features

Compare to real pixel LED display series, main advantages of virtual pixel series are as follow
>> Virtual pixels are in a class of their own. Every Virtual pixel contains 2 Red lamps, 1 Blue LED and 1 Green LED. Each LED is spaced out evenly to provide an even higher degree of clarity. Virtual pixel provides more shades of colors due to the many different levels of intensity combinations. Virtual Modules provide brighter pictures and videos. Virtual pixels are perfect for outdoor use in any condition. They provide great visibility during day and night.
>> The new Outdoor Full Color LED sign brings out the most vivid pictures; using the unique setup of 2 R1G1B LED’s to create a resolution that captivates the eyes. With the inclusion of yet another red LED to the traditional 1 red, 1 green, 1 blue LED lights per pixel, the color depth is exponentially increased.
>> Fast locks adopted. The data and power supply cables features of weather-proof and long life-span, and easy usage. Even if the screen needs to be removed to another location, this enables easy and fast installation. Perfect durable mechanical structure, with IP65 for outdoor application.
>> As one of the best sellers in VERYPIXEL, the 20mm pitch virtual pixel full color sign is a vibrant form of attraction. The unique setup of LED lights per pixel creates a picture that can be compared to a 10mm real type. The 20mm pitch offers the luxury definition, and are most desirable for those looking for the best quality. Typical uses include, but are not limited to billboards, outdoor media, outdoor advertising, mobile displays and sport events.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 300-500mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA



Module Parameters

Pixel Pitch 25mm  p20 outdoor full color LED modules
Pixel Configuration 2R1G1B
Module Resolution 8dots*8dots for real
Module Pixels 64 dots
Module Size 200mm*200mm
Module Weight 1.05KG



Cabinet Parameters

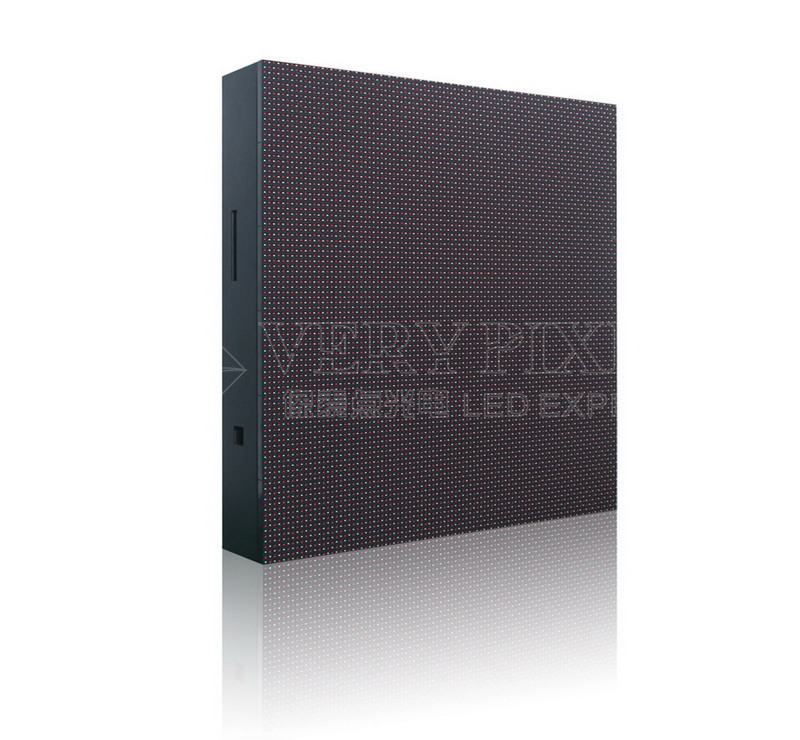

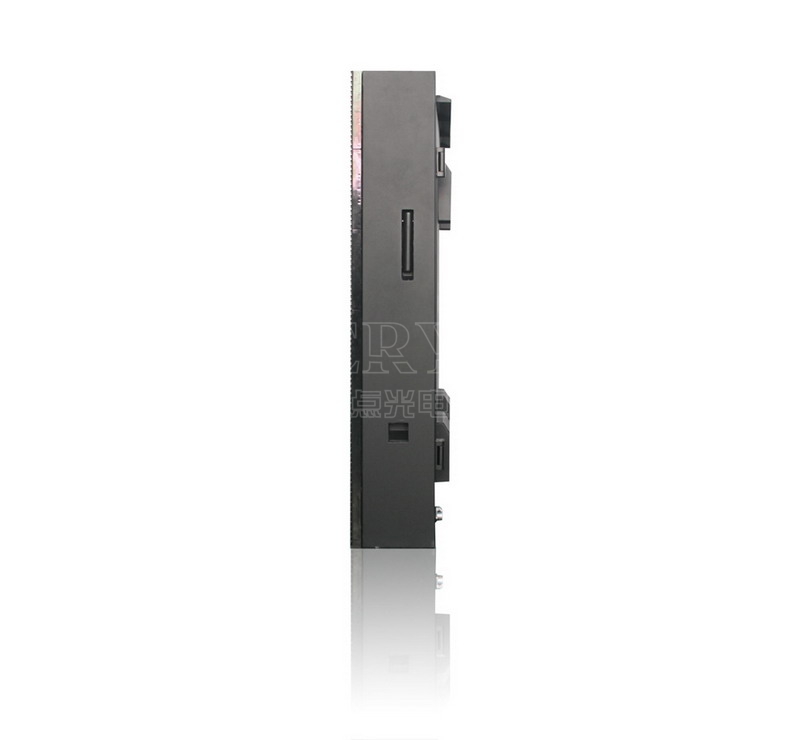

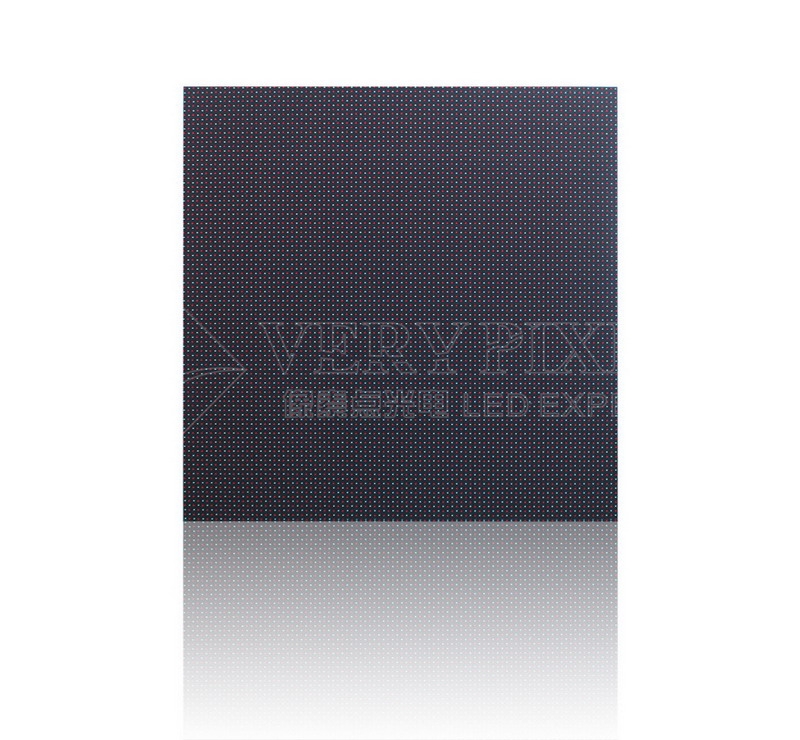

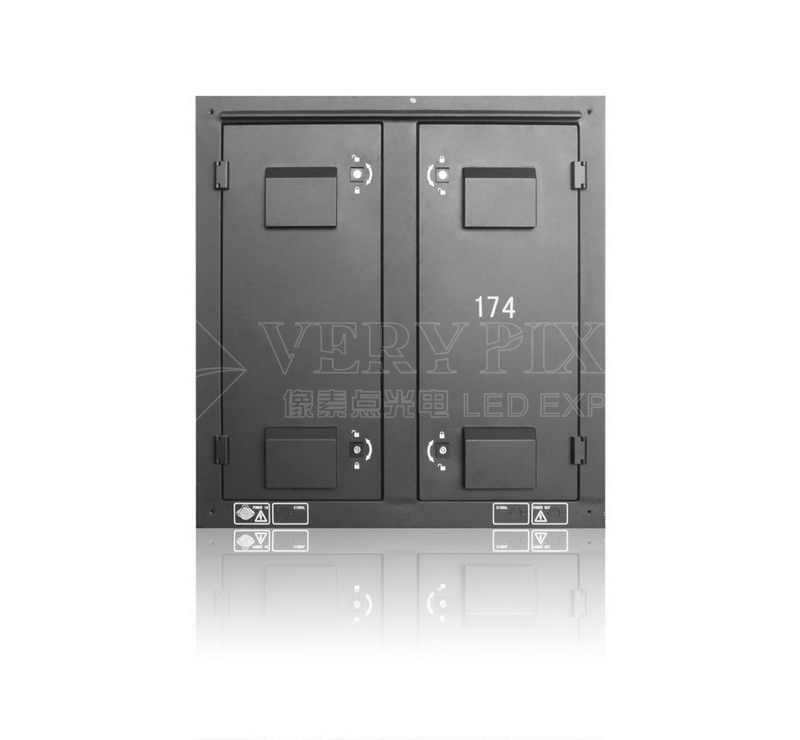

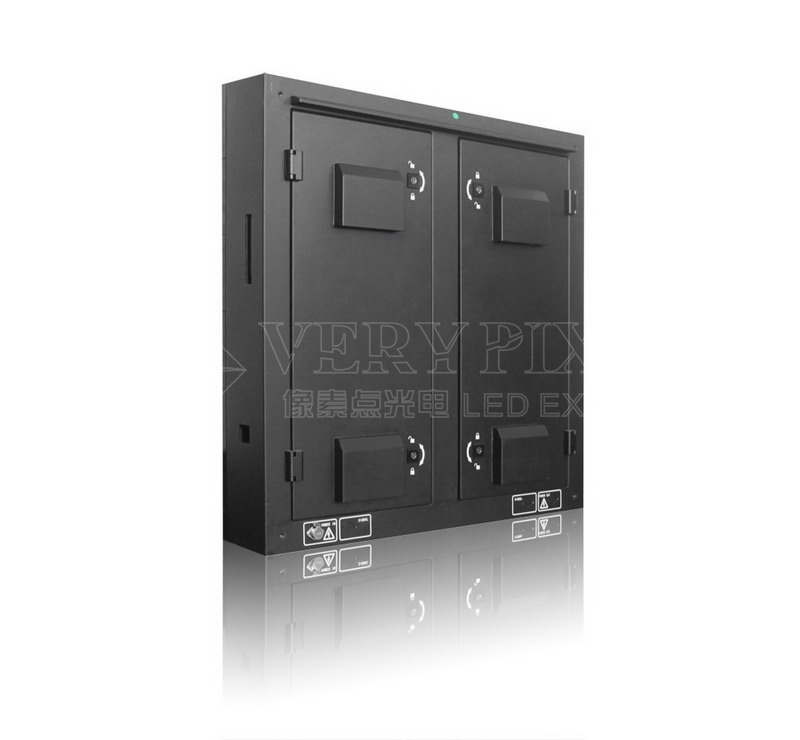

Cabinet Size(W*H*D) 1000*1000*160(mm)  p20 outdoor full color LED display cabinet
Cabinet Resolution 40dot*40dot for real
Module Quantity 25 pcs
Cabinet Pixels 1600dots
Pixel Density 1600 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 800W/sqm
Material Iron or Aluminum
Cabinet Weight 65KG for iron cabinet;
45KG for aluminum cabinet



Screen Parameters

Brightness ≥5500cd/sqm
Contrasts (Max. /Min.) 1.001:1
Driving Method Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 20m to 400m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40°C to 60°C
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
