• VP-O12SMD Outdoor LED Display
  • Type:Outdoor SMD Display
  • Model:VP-O12SMD
  • Hits:16485
  • Available applications:
    Outdoor High-end advertising application

    billboards, Information Display and so on

    Project Case>>>



Tag: P12 SMD outdoor full color LED Displays,P12 SMD full color led video wall,P12 outdoor SMD led displays,P12 SMD full color modules

P12 outdoor SMD LED Screens Detailed Description
>> As the improving technology of the SMD and chips luminance with smaller size, SMD will be more and more used in both indoor and outdoor display application. Very pixel will be always focusing on the leading innovative technology developments and offer you the best and the latest products.
>> Full color video matrix display board system enables you to develop unique information strategies that fit your evolving needs and give you a competitive advantage in the markets. This powerful information gateway has been widely used in KL to assemble the best information technology solution for your current needs. All your social welfare information for dissemination to the public interest or for advertised business information can be available real-time or on-line basic upon requests through this technology.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 500-900mcd 120º/120º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/120º 465-475nm 25℃,20mA



Module Parameters

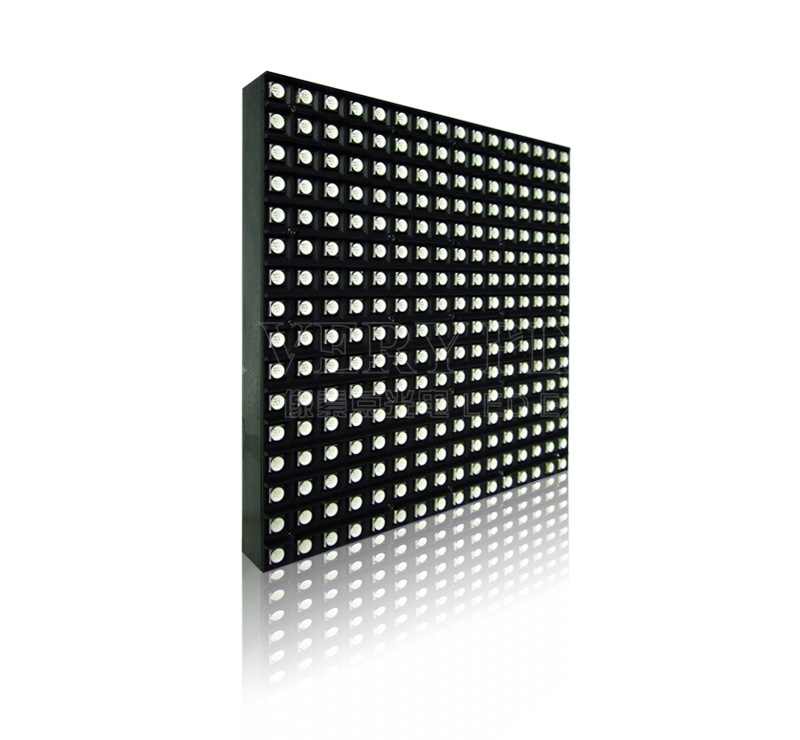

Pixel Pitch 12mm  P12 SMD Outdoor LED Display modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 16dots*16dots for real
Module Pixels 256 dots
Module Size 192mm*192mm
Module Weight 0.55KG



Cabinet Parameters

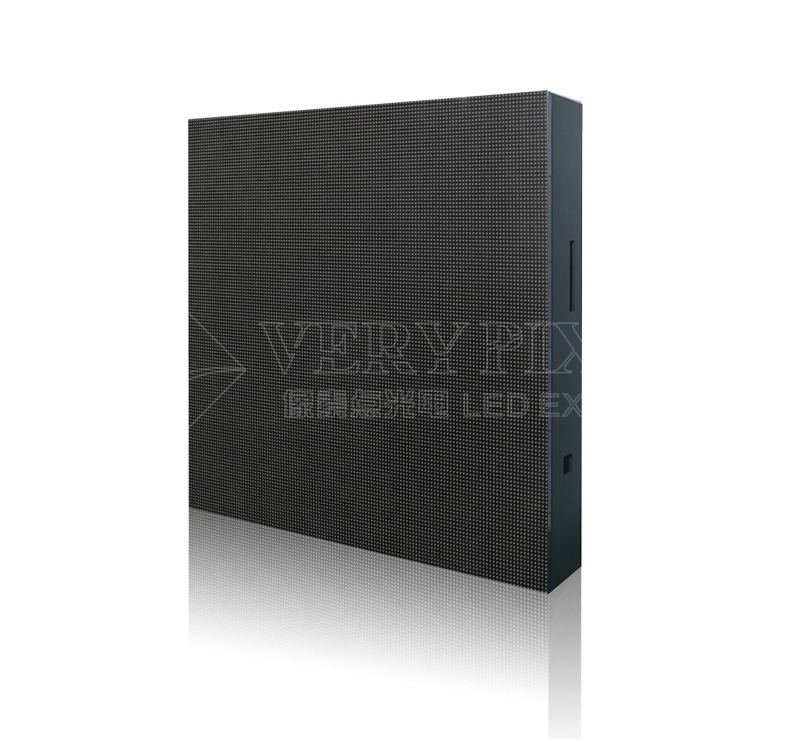

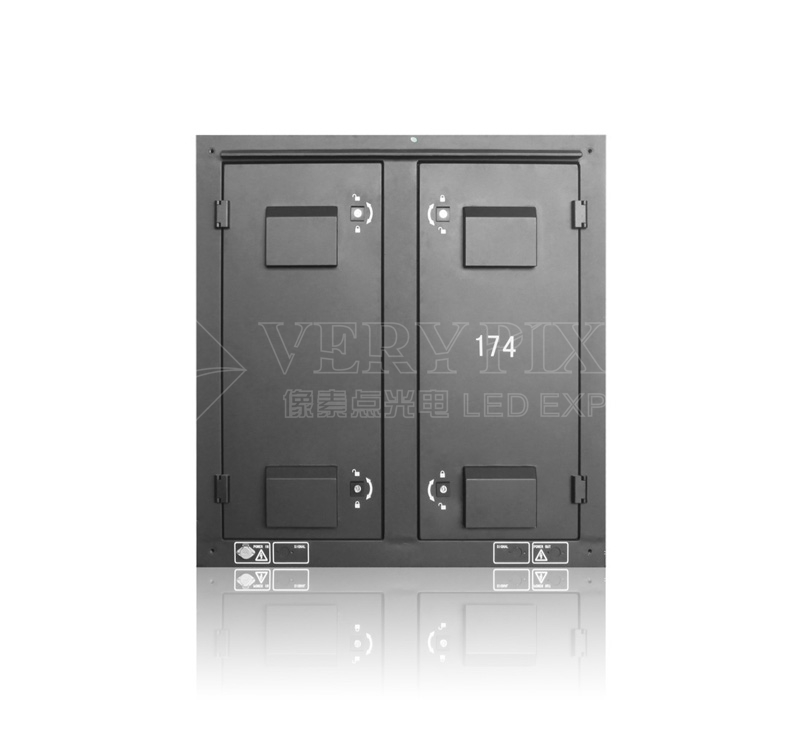

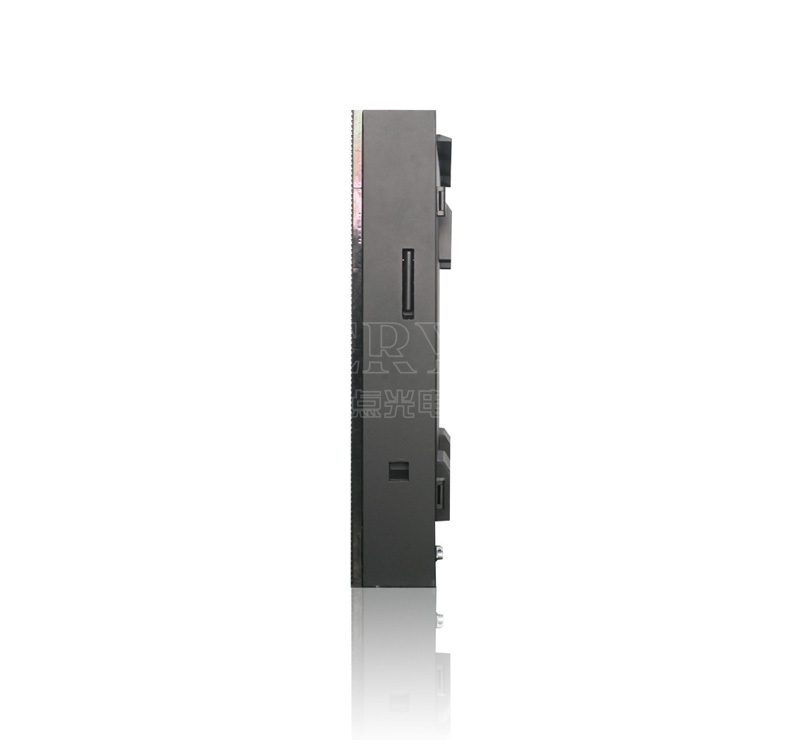

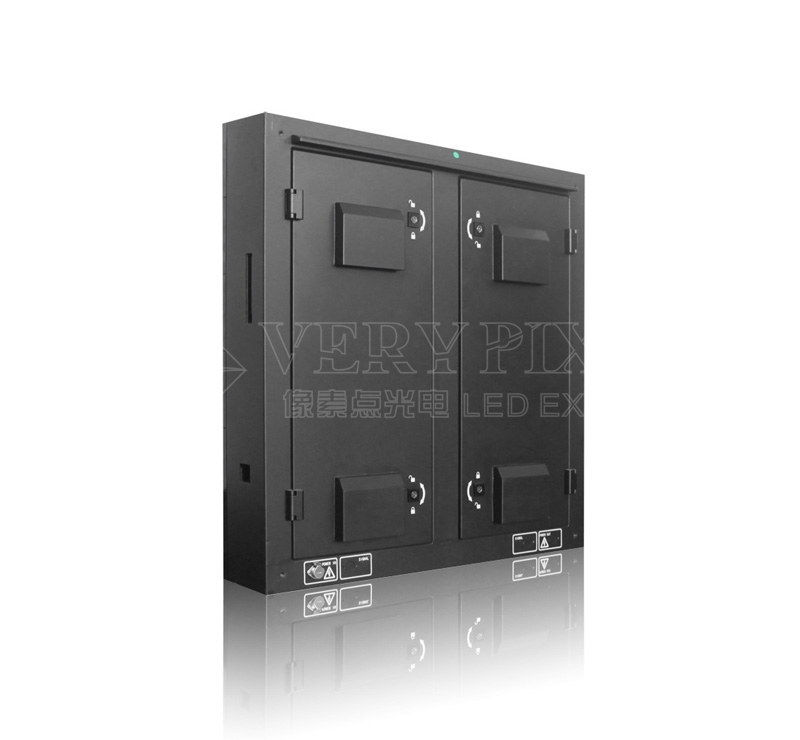

Cabinet Size(W*H*D) 768*768*160(mm)  P12 SMD Outdoor LED video wall cabinet
Cabinet Resolution 64dot*64dot for real
Module Quantity 16 pcs
Cabinet Pixels 4096 dots
Pixel Density 6944 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 60KG for iron cabinet;
40KG for aluminum cabinet



Screen Parameters

Brightness ≥5000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 12m to 150m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
