• VP-O16SMD Outdoor LED Display
  • Type:Outdoor SMD Display
  • Model:VP-O16SMD
  • Hits:8529
  • Available applications:
    Outdoor High-end advertising application

    billboards, Information Display and so on

    Project Case>>>

Tag: P16 outdoor full color SMD LED Displays, P16 SMD full color led video wall, P16 outdoor SMD led displays, P16 SMD full color modules

>> The most economical and rational solution for 3 in 1 full color technology, Verypixel’s integrated P16 outdoor SMD LED Displays, with higher integration level, less production process, higher rate of fine products and less waste of resource, are suitable for automatic control production which reduces the cost of products.

>> SMD 3 in 1 full color is our patented product. It has perfect color mixture nature, high brightness performance and wider viewing angle. It is very suitable for rental video solution, as it has many advantages.


P16 outdoor SMD LED Displays Detailed Description
>> The wide viewing angle make all the people around the stage can watch the screen clearly.
>> It has very durable surface, rental LED display has to be very portable. So the strong surface can protect the led light well .and the surface of the module is smooth, it can be cleaned easily.
>> Especially, the good quality chips and reliable chip size design, which makes it more and more popular in Rental industry.


LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 500-900mcd 120º/120º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/120º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/120º 465-475nm 25℃,20mA


Module Parameters

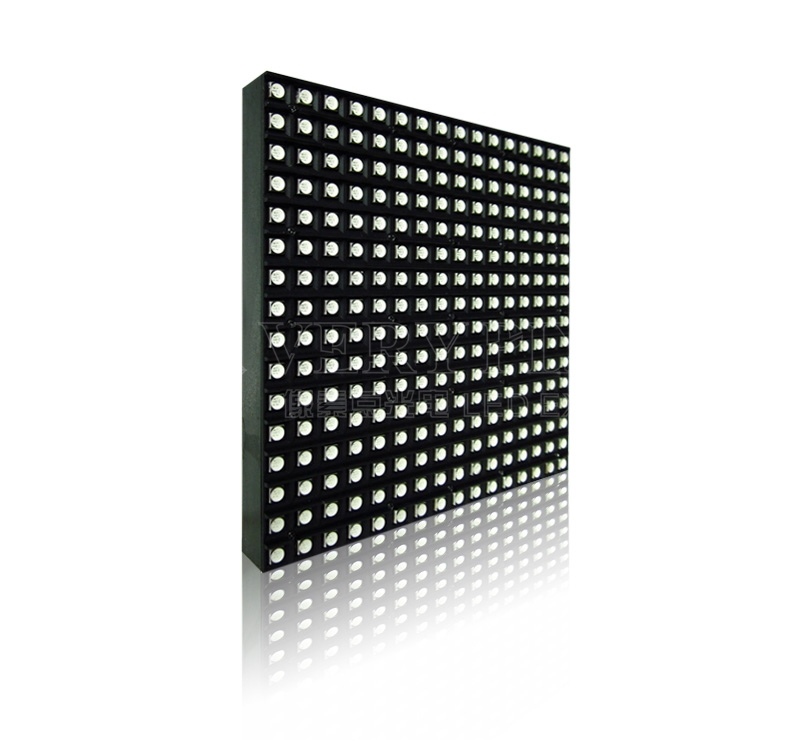

Pixel Pitch 16mm  P16 SMD Outdoor LED Display screen modules
Pixel Configuration 1R1G1B SMD 3in1
Module Resolution 16dots*16dots for real
Module Pixels 256 dots
Module Size 256mm*256mm
Module Weight 0.55KG


Cabinet Parameters

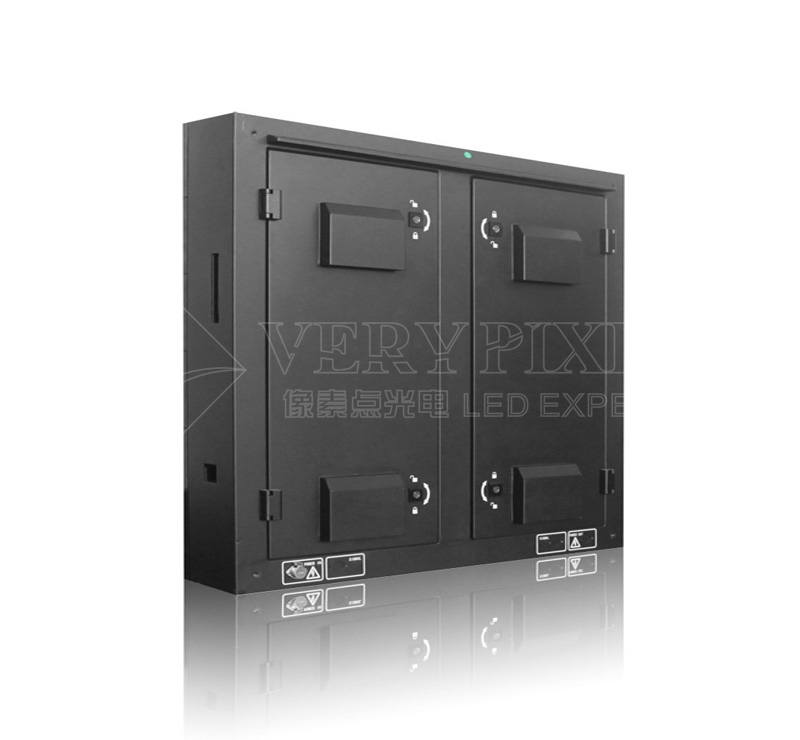

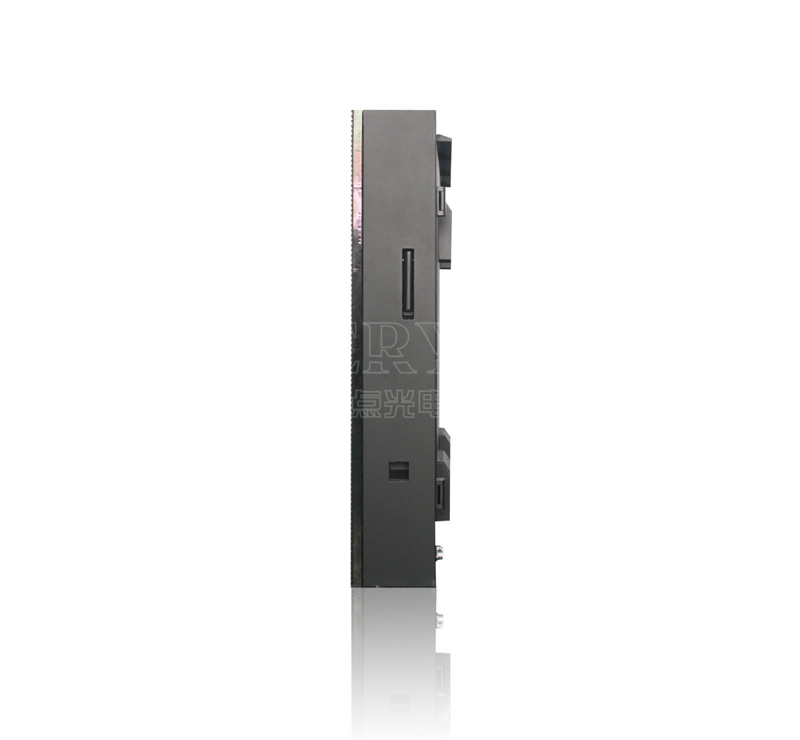

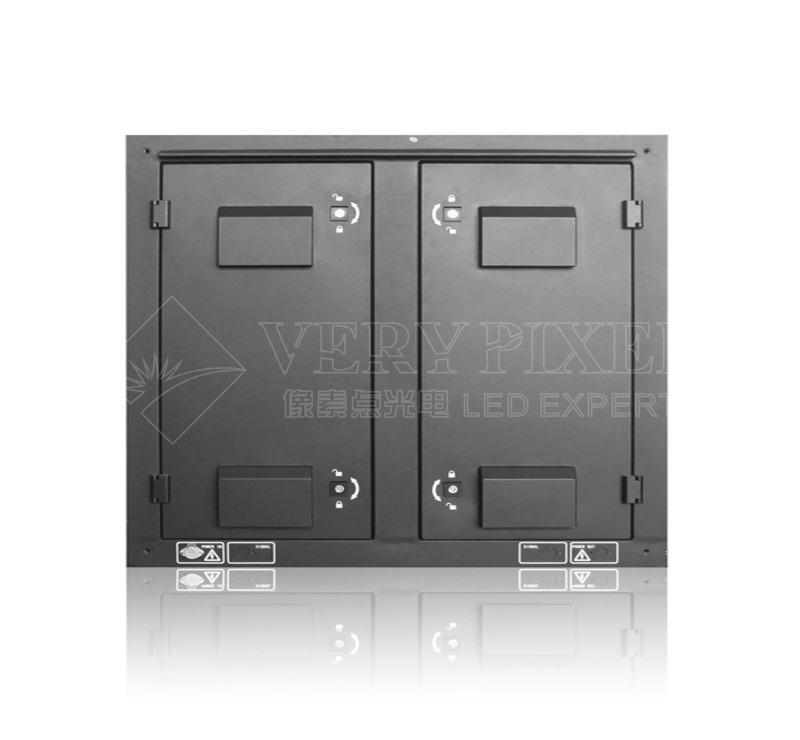

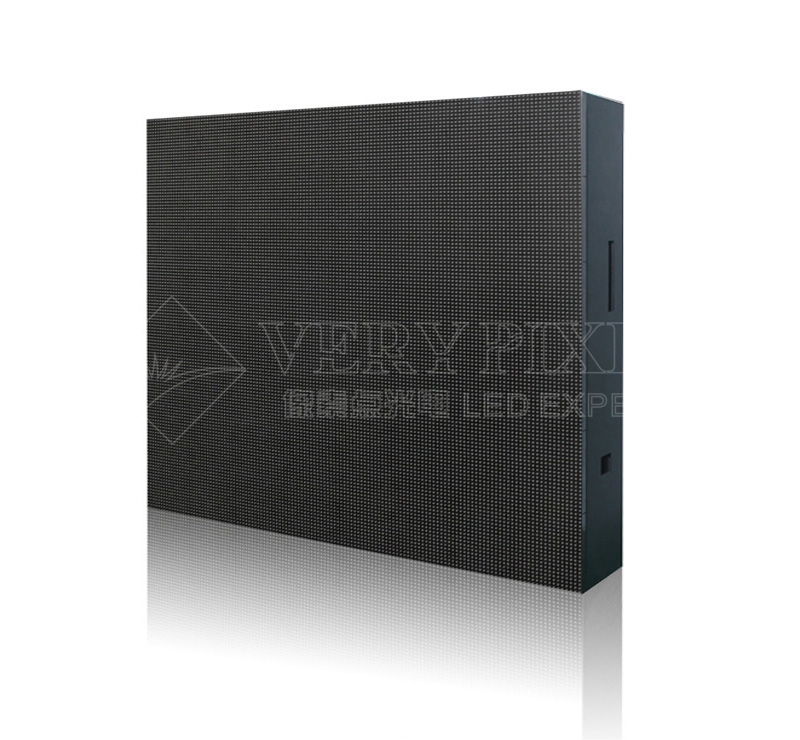

Cabinet Size(W*H*D) 1024*768*160(mm)  PH16 SMD Outdoor LED billboard cabinet
Cabinet Resolution 64dot*48dot for real
Module Quantity 16 pcs
Cabinet Pixels 3072 dots
Pixel Density 3906 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 750W/sqm
Material Iron or Aluminum
Cabinet Weight 60KG for iron cabinet;
40KG for aluminum cabinet


Screen Parameters

Brightness ≥5000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 16m to 200m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤60kg/sqm for Iron cabinet /40kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
