• VP-Smartile-O10-SMD
  • Type:Front Service Display
  • Model:VP-FS-O10-SMD
  • Hits:14531
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

     Video Demo


Tag: P10mm front and rear service LED display, P10 smd outdoor front access led video wall, Service from front side, front service outdoor led billboard

P10 front service led displays: No need go inside sign to suffer heat torturing now!
Outdoor high resolution All weather proof High brightness with super low power consumption, Smart structure design and long time proven technology.




Product Features


- General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.

- Ultra high brightness (6000 Nits) with low power consumption (average 180W/sqm).

- High refresh rate with software adjustable, suitable for videos, picture and filming.

- High gray scale (16 bits) with perfect real visual performance and effects.

- High Contrast ratio (2000:1) with self-developed black mask and black coating technique.

- Wide viewing angle (greater than 110° in horizontal); IP65 protection rating.

- Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).

- High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and
   color correction bring greater uniformity.


LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 800-900mcd 110º/110º 620-630nm 25℃,20mA
Green LED 1400-1800mcd 110º/110º 520-535nm 25℃,20mA
Blue LED 250-400mcd 110º/110º 465-475nm 25℃,20mA

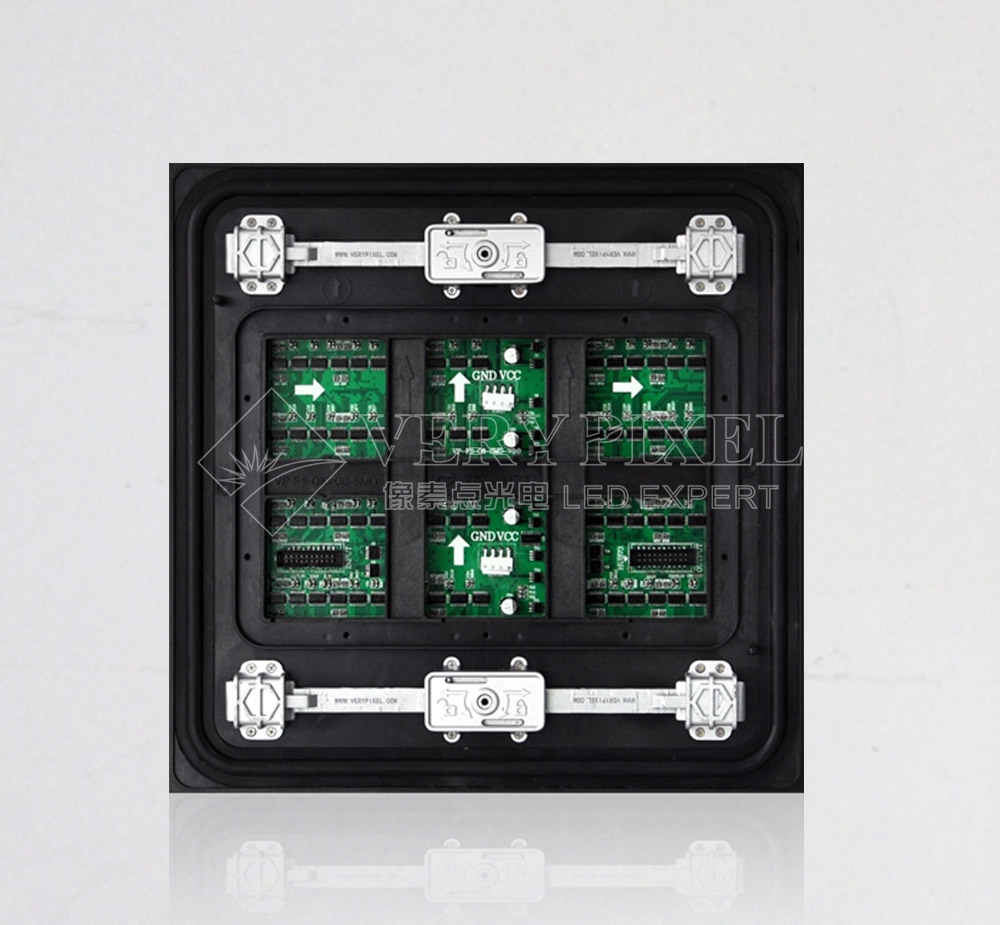

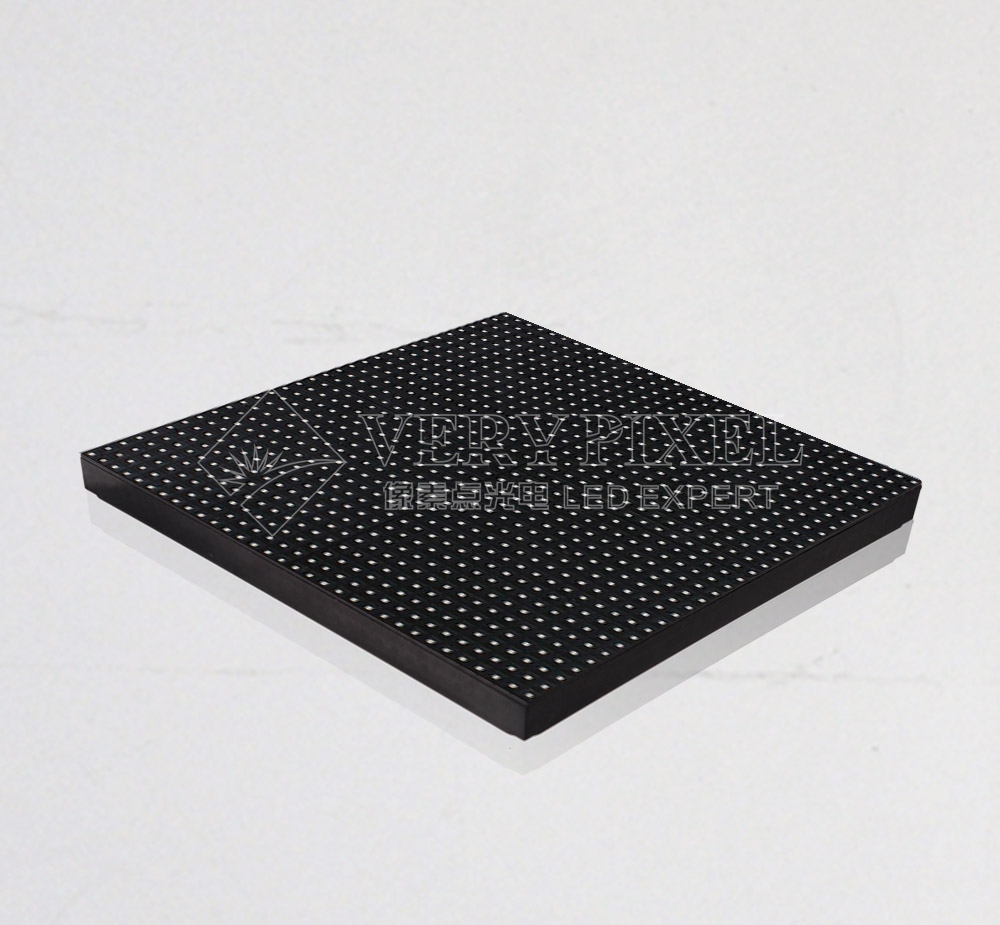

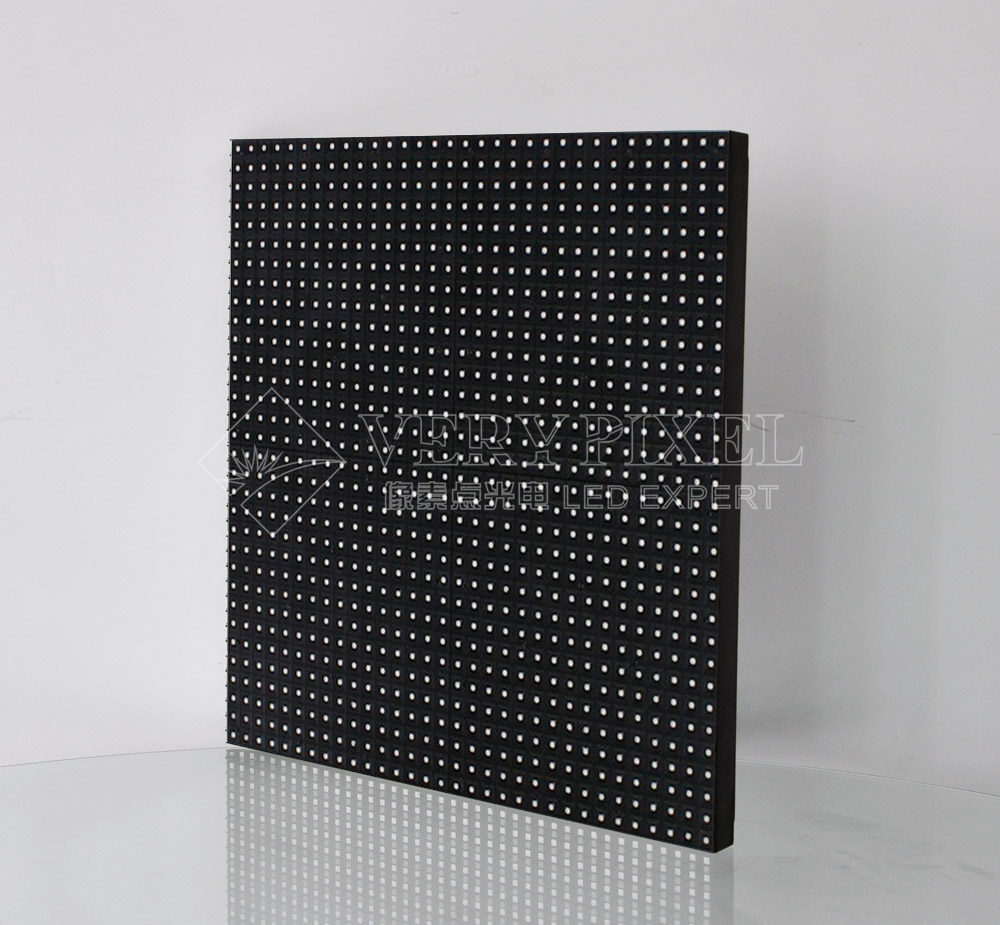

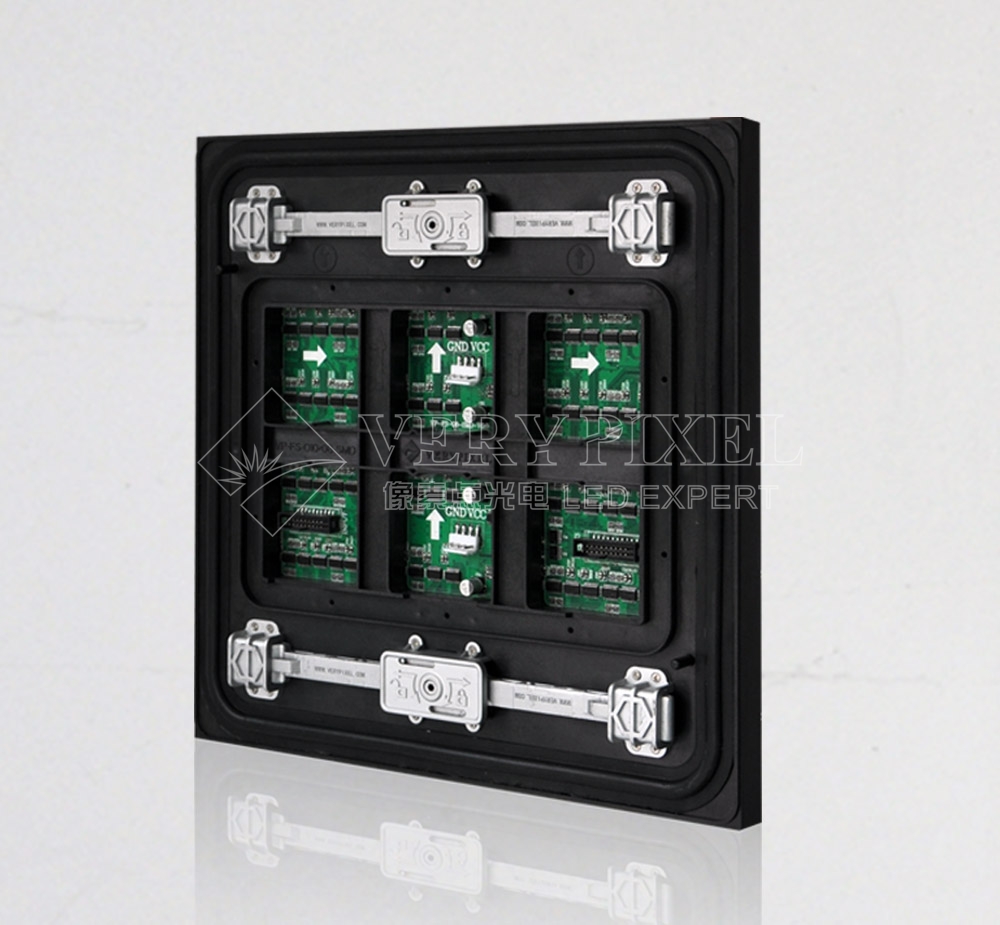

Module Parameters

Pixel Pitch 10mm
Pixel Configuration SMD 3535
Module Resolution 32dots*32dots for real
Module Pixels 1024 dots
Module Size 320mm*320mm
Module Weight 1.70KG


Cabinet Parameters

Cabinet Size(W*H*D) 960*960*150(mm) or customizable
Cabinet Resolution 96dot*96dot for real
Module Quantity 9 pcs
Cabinet Pixels 9216 dots
Pixel Density 10000 dot/sqm
Avg. Power Consumption 180W/sqm
Max. Power Consumption 550W/sqm
Material Iron or Aluminum
Cabinet Weight 55KG for iron cabinet;
40KG for aluminum cabinet


Screen Parameters

Brightness ≥6000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Real & 1/4 scan
View Angle Horizontal 110° Vertical 110°
Optimal Viewing Distance 30m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating -40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
