• VP-Smartile-O13
  • Type:Front Service Display
  • Model:VP-FS-O13
  • Hits:14808
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

     Video Demo



Tag: P13mm front and rear service LED display, P13 front access led display, front open led cabinet, front service led display

P13 front serviceable led sign: No need go inside sign to suffer heat torturing now!
Outdoor high resolution All weather proof High brightness with super low power consumption, Smart structure design and long time proven technology.



verypixel-smartile-front-maintenance-led-display-screen



Product Features



- General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.

- Ultra high brightness (7000 Nits) with low power consumption (average 180W/sqm).

- High refresh rate with software adjustable, suitable for videos, picture and filming.

- High gray scale (16 bits) with perfect real visual performance and effects.

- High Contrast ratio (2000:1) with self-developed black mask and black coating technique.

- Wide viewing angle (greater than 120° in horizontal); IP65 protection rating.

- Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).

- High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and
    color correction bring greater uniformity.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 1000-1100mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA

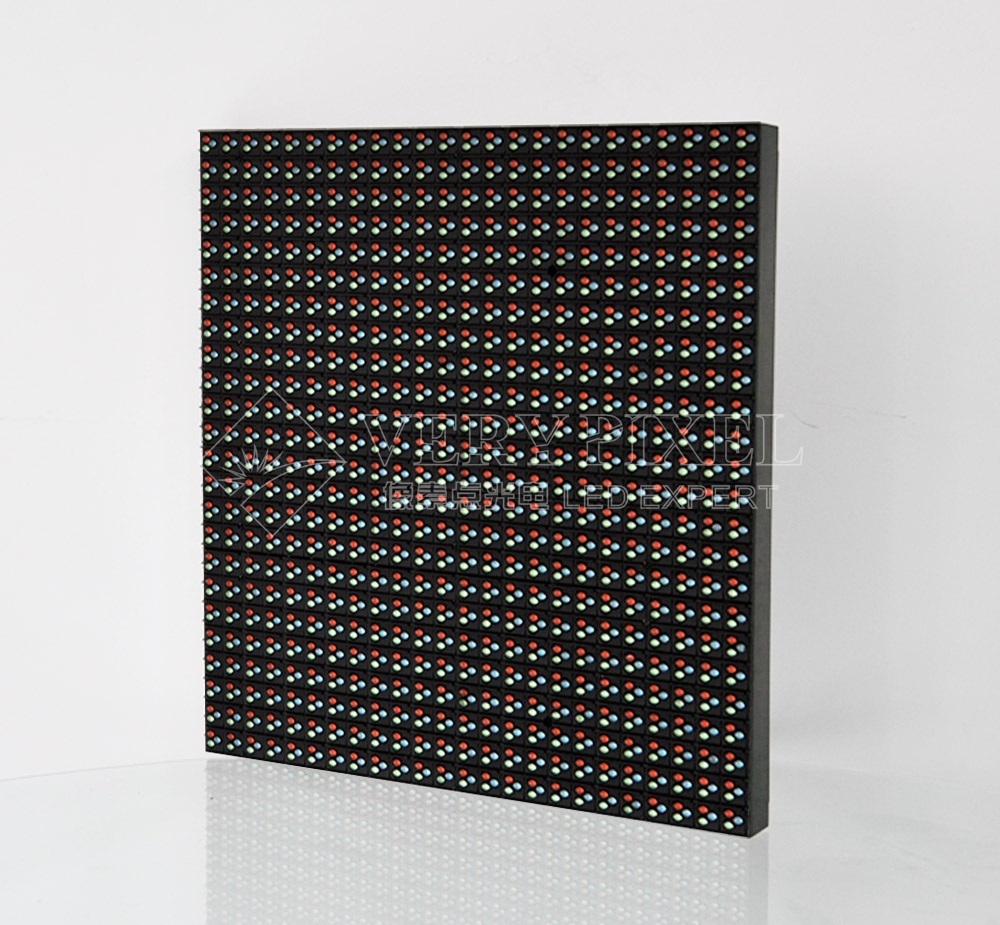

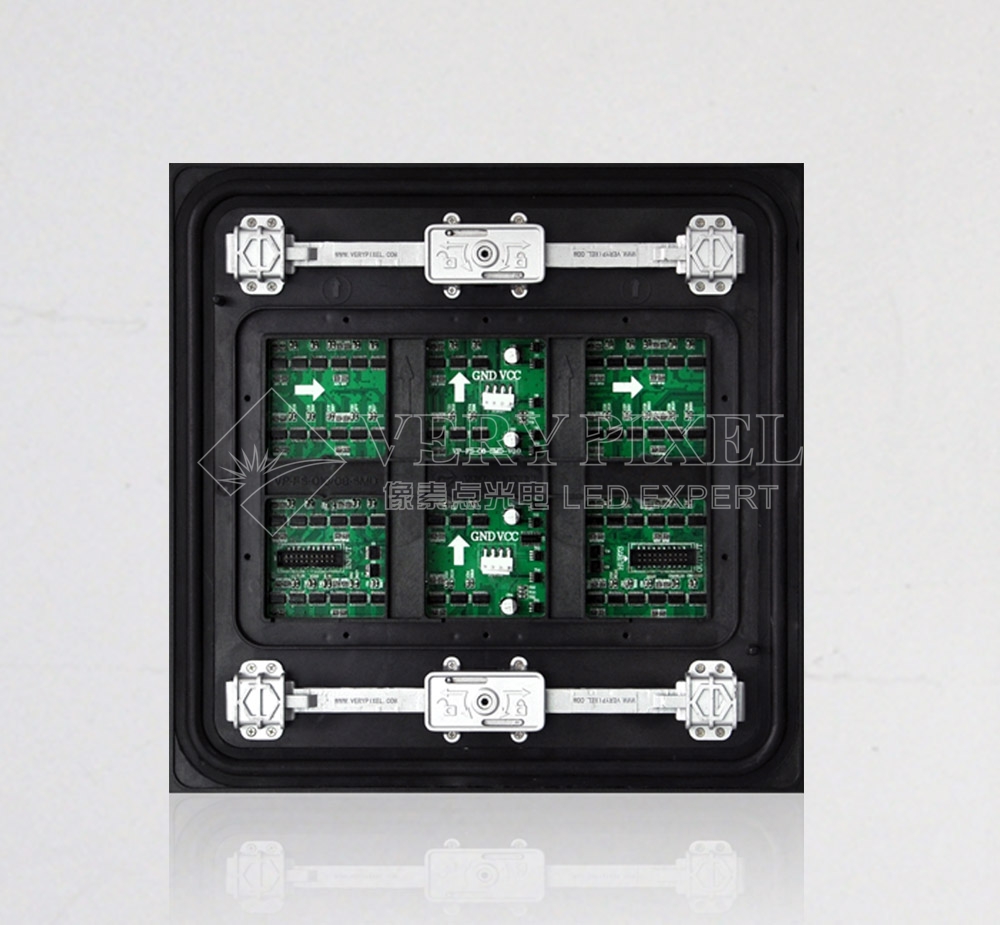

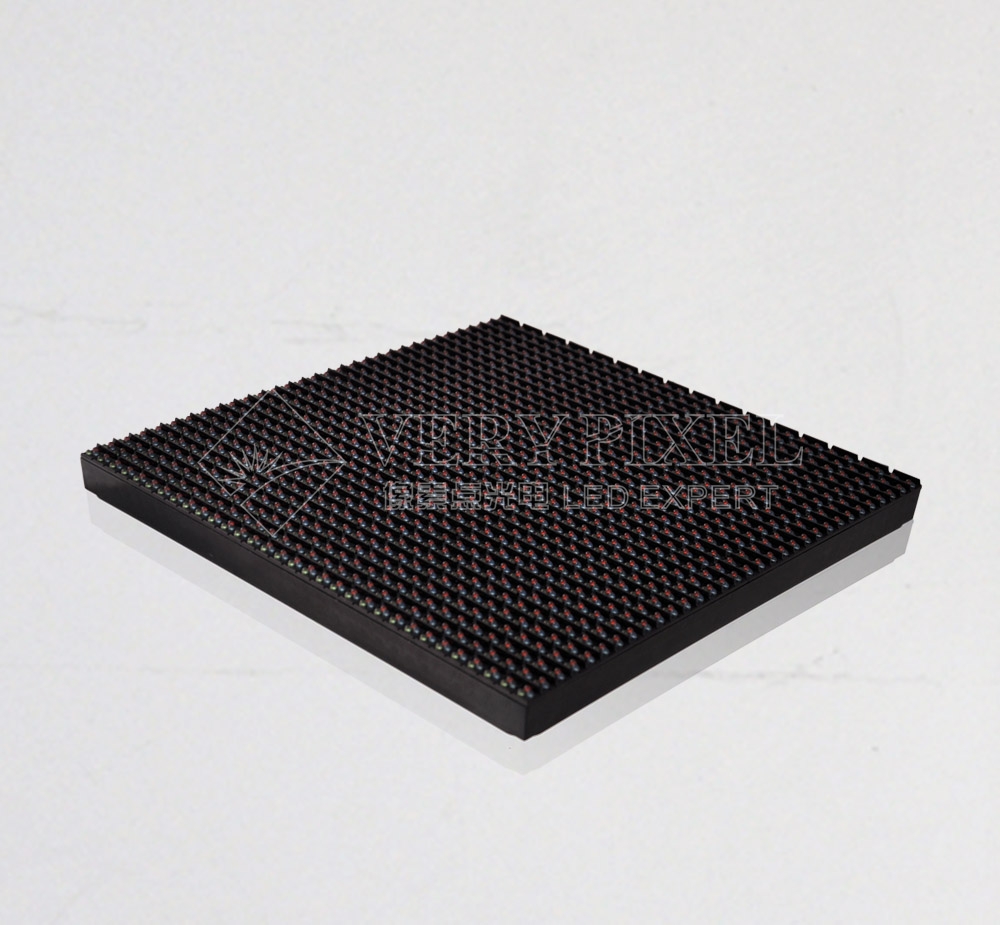

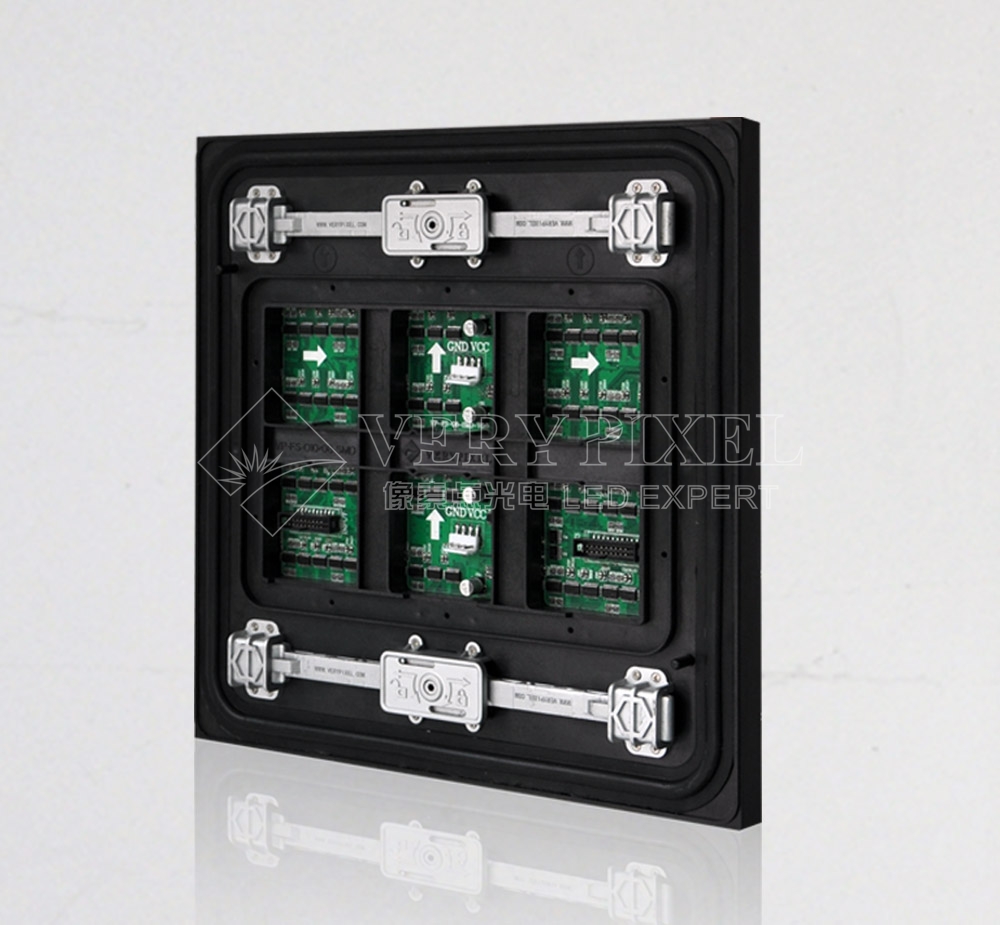

Module Parameters

Pixel Pitch 13mm  front open LED sign modules
Pixel Configuration 1R1G1B
Module Resolution 24dots*24dots for real
Module Pixels 576 dots
Module Size 320mm*320mm
Module Weight 1.70KG



Cabinet Parameters

Cabinet Size(W*H*D) 960*960*150(mm) or customizable  front open LED video wall cabinet
Cabinet Resolution 72dot*72dot for real
Module Quantity 9 pcs
Cabinet Pixels 5184 dots
Pixel Density 5917 dot/sqm
Avg. Power Consumption 180W/sqm
Max. Power Consumption 550W/sqm
Material Iron or Aluminum
Cabinet Weight 55KG for iron cabinet;
40KG for aluminum cabinet



Screen Parameters

Brightness ≥7000cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Real & Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 39m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating -40°C to 60°C
Humidity-operating 10% to 90%
Operating System  Windows98/me/2000/NT/XP/win7
