• VP-O20 outdoor full color 1R1G1B LED Display
  • Type:Outdoor Full Color Display
  • Model:VP-O20
  • Hits:22674
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

    Project Case>>>



Tag: P20 outdoor full-color advertising LED signs, P20 outdoor full color 1R1G1B LED Displays, P20 full color led video wall, P20 outdoor led displays ,P20 full color 1R1G1B modules

P20 outdoor full color 1R1G1B LED display: LED advertising video display is a new tendency of the advertisement industry for cost-effective. It is going to replace the traditional advertisement billboards and become a new and strong force of indoor and outdoor media.

Product Features

Compare to new-born SMD LED display series, main advantages of DIP series are as follows
>> Advertising play list schedule: The modern multimedia software for managing importing commercials and information in real-time leaves nothing to be desired. Simply create your playlists and assign them to a monthly, weekly or daily display format.
>> Cabinets can be customized and designed into standard size for different configurations, which enable multiple choices on the pixel pitch, so that the customized resolutions can be supplied to customers.
>> Fast locks adopted. The data and power supply cables features of weather-proof and long life-span, and easy usage. Even if the screen needs to be removed to another location, this enables easy and fast installation. Perfect durable mechanical structure, with IP65 for outdoor application.
>> Moreover, our guarantee and extensive service offer provide you with the highest security for the return on your investment. one time investment, no need to change hardware when you are renting your advertisement board to different clients, just change to the new one easily by high friendly intelligent software, cost-effective, you can show much more advertisement in a certain time, which is much more effective than triple revolving display board.



LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 300-500mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA



Module Parameters

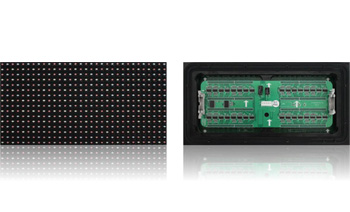

Pixel Pitch 20mm  p20 outdoor full color LED modules
Pixel Configuration 1R1G1B
Module Resolution 16dots*8dots for real
Module Pixels 128 dots
Module Size 320mm*160mm
Module Weight 0.8KG



Cabinet Parameters

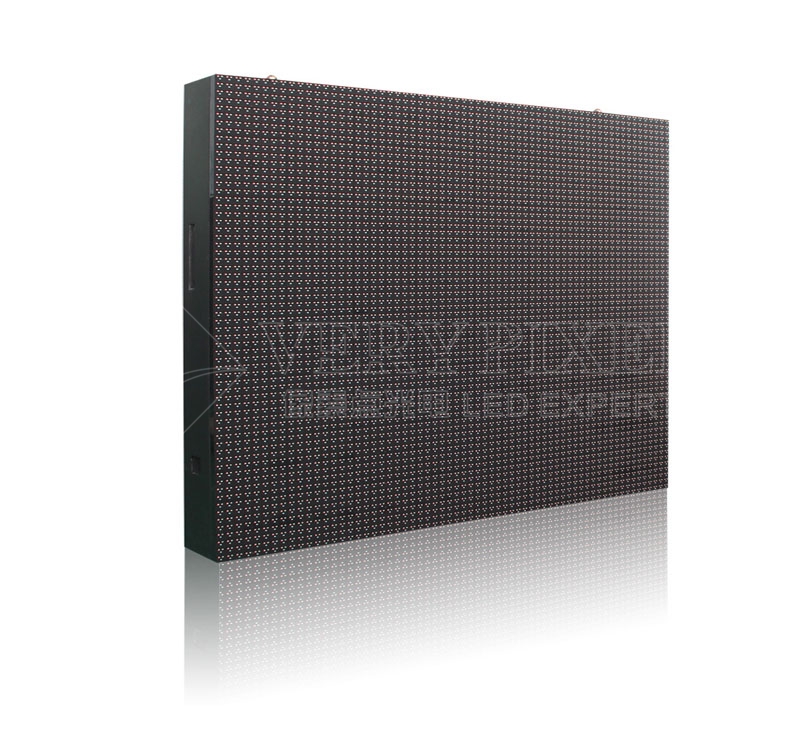

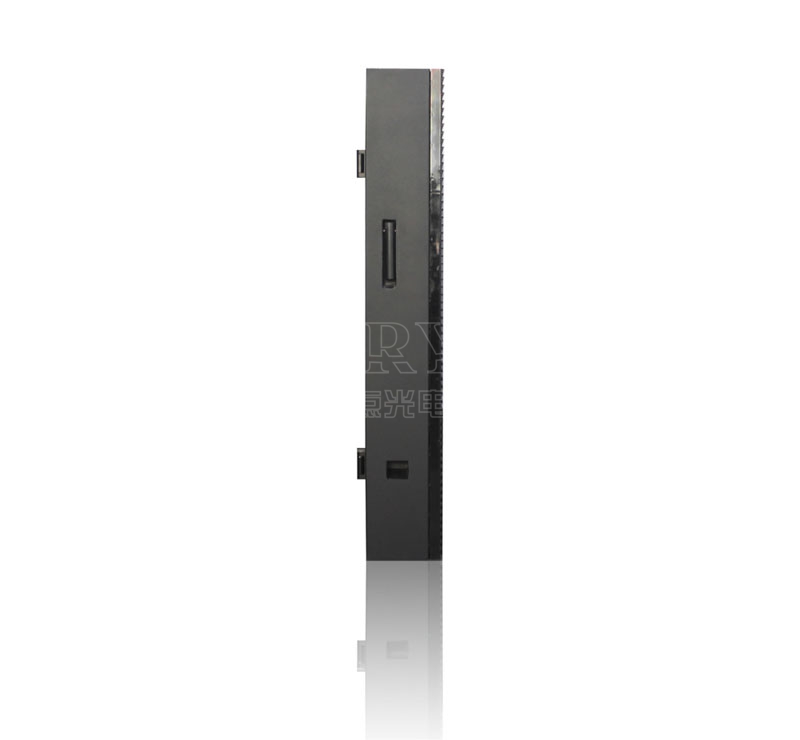

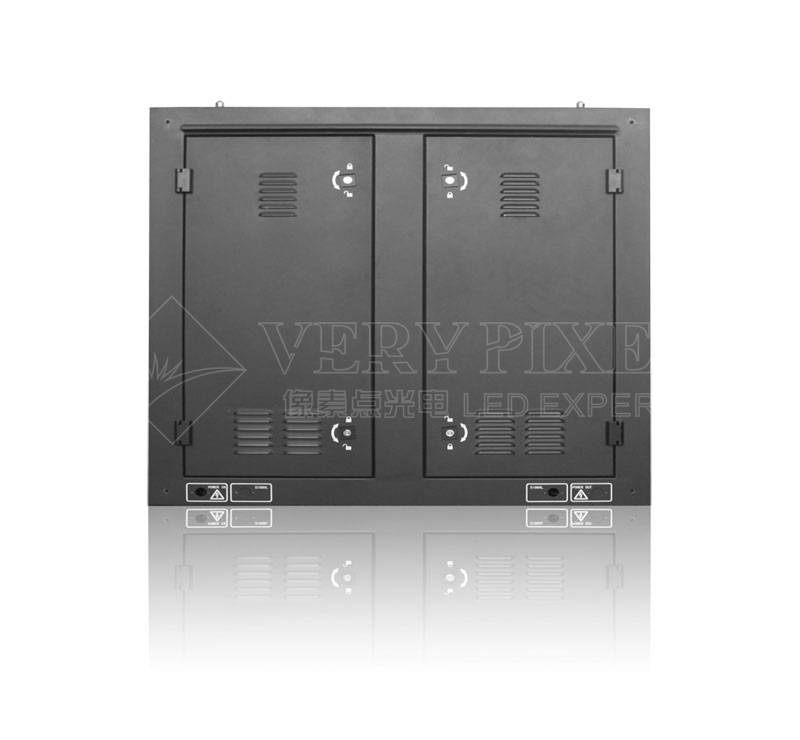

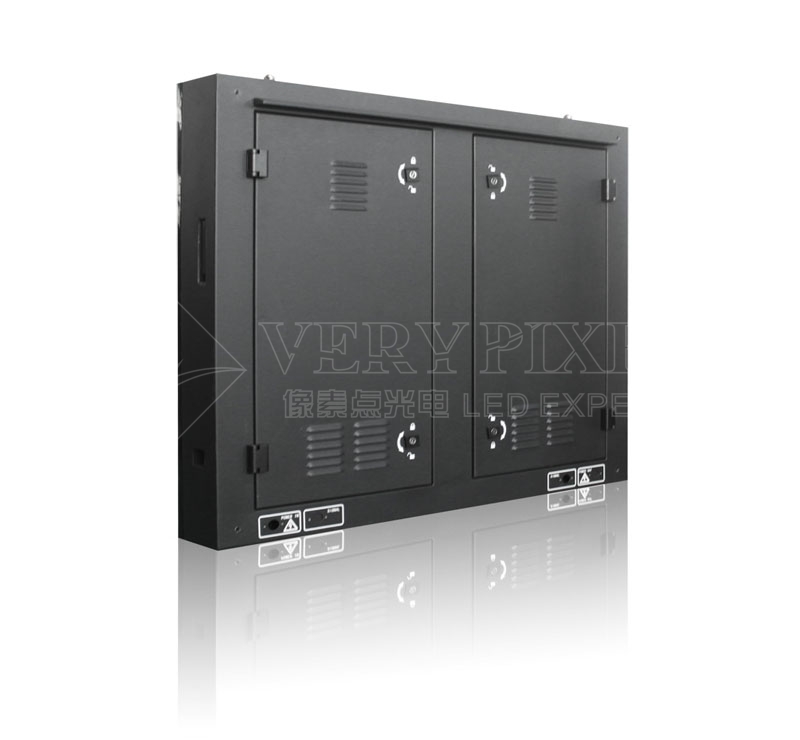

Cabinet Size(W*H*D) 1280*960*160(mm)  p20 outdoor full color LED display cabinet
Cabinet Resolution 64dot*48dot for real
Module Quantity 24 pcs
Cabinet Pixels 3072 dots
Pixel Density 2500 dot/sqm
Avg. Power Consumption 180W/sqm
Max. Power Consumption 550W/sqm
Material Iron or Aluminum
Cabinet Weight 65KG for iron cabinet;
45KG for aluminum cabinet



Screen Parameters

Brightness ≥5500cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 20m to 400m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃ to 60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
