• VP-O16V outdoor full color 2R1G1B LED Display
  • Type:Outdoor Full Color Display
  • Model:VP-O16V
  • Hits:23528
  • Available applications:
    Outdoor advertising, billboards
    rental business and so on.

    Project Case>>>


Tag: P16 outdoor full color 2R1G1B LED Displays, P16 full color led video wall, P16 outdoor led displays, P16 full color 2R1G1B modules

P16 outdoor full color 2R1G1B LED Displays: Verypixel with over years of experience in LED industry; we do have solid knowledge on LED chips, and LED lighting and LED display area. DIP LED display is called as the most traditional, practical and the most mutual technology LED display. Currently our company uses two main items, DIP346 and DIP546 which means specification and size of the chip; we provide custom made applications to meet with our client's need.

Product Features

Compare to new-born SMD LED display series, main advantages of DIP series are as follows
>> 346 is mainly used in high definition outdoor LED display, while 546 in large pixel pitch and high brightness. With the development of the technology, 346 can match the brightness and heat radiation effect so that the trend seems to replace 546, gradually to become one item.
>> According to the usage mode, DIP LED display can be classified as outdoor DIP 3 lamp series, outdoor DIP 4 lamp series, DIP luminance series and DIP back wall series.
>> LED is a long lifetime lamp and its energy efficiency is increasing steadily, it makes a contribution to reduce Greenhouse effect. For instance, efficiency can be greatly increased under same brightness to reduce CO2 emissions and the greenhouse effect. Furthermore, long lifetime LED lamps reduce trash volumes and conserve resources.


LED Parameters

Item Luminous Intensity Viewing Angle(H/V) Wavelength Test Condition
Red LED 300-500mcd 120º/60º 620-630nm 25℃,20mA
Green LED 1800-2200mcd 120º/60º 520-535nm 25℃,20mA
Blue LED 250-500mcd 120º/60º 465-475nm 25℃,20mA


Module Parameters

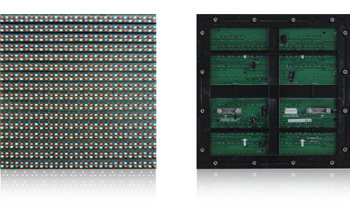

Pixel Pitch 16mm  P16 outdoor full color 2R1G1B LED modules
Pixel Configuration 2R1G1B
Module Resolution 16dots*16dots for real / 32dots*32dots for virtual
Module Pixels 256 dots
Module Size 256mm*256mm
Module Weight 1.25KG


Cabinet Parameters

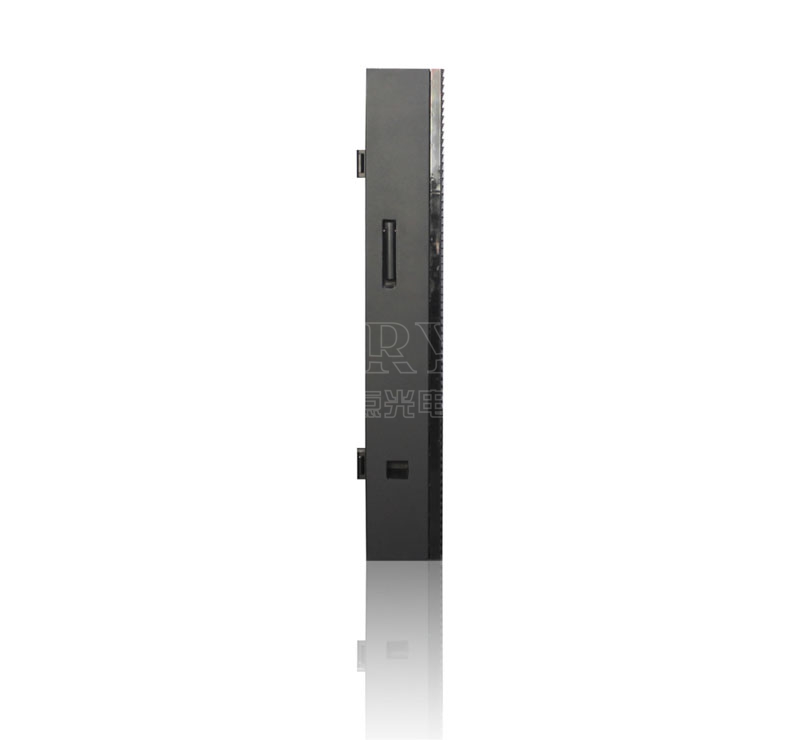

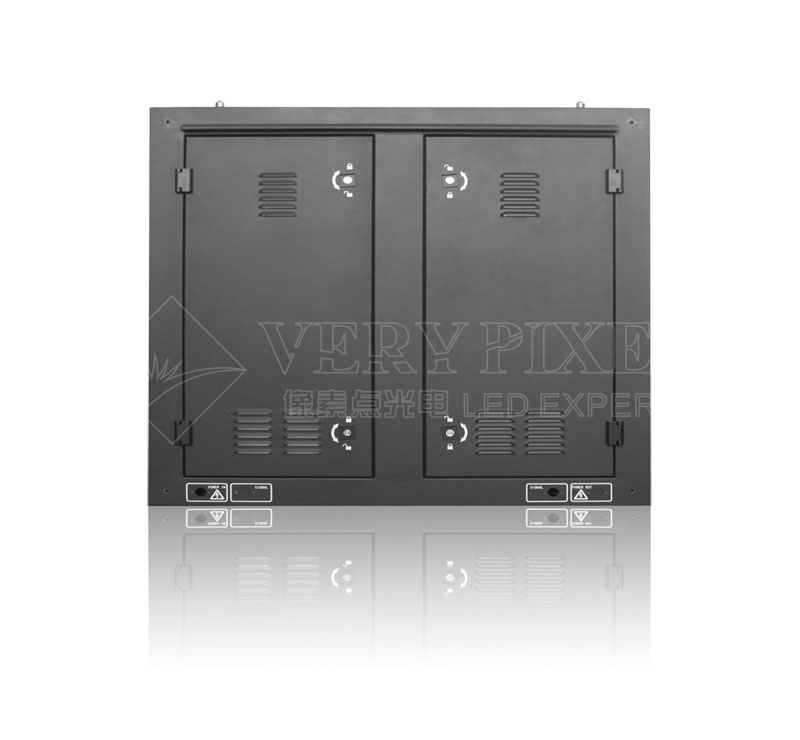

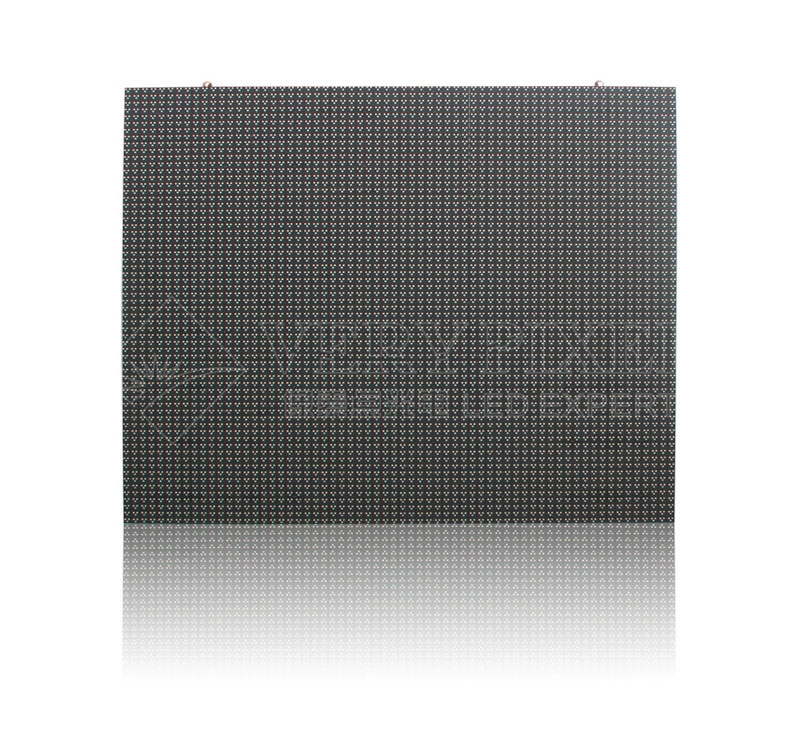

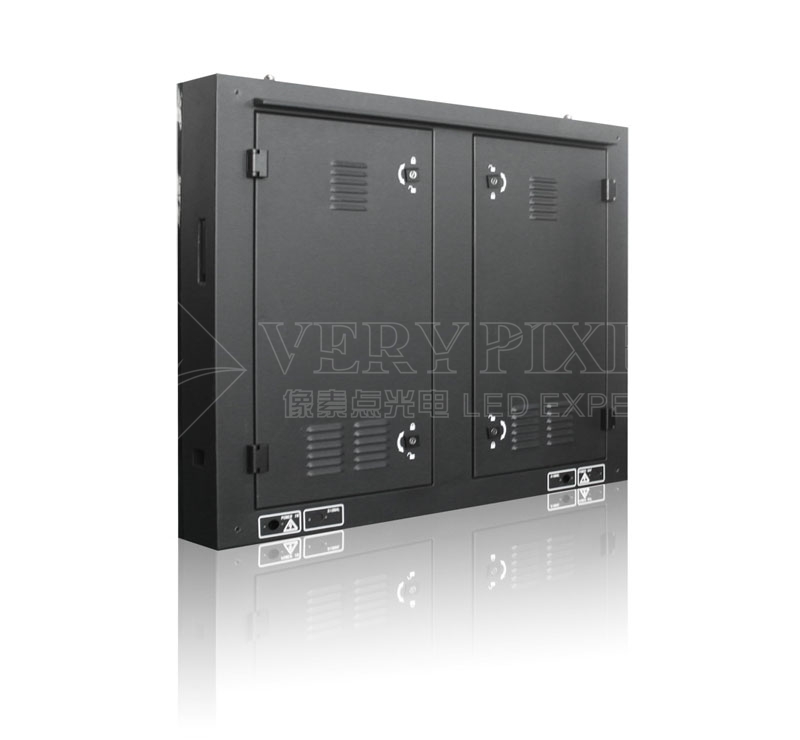

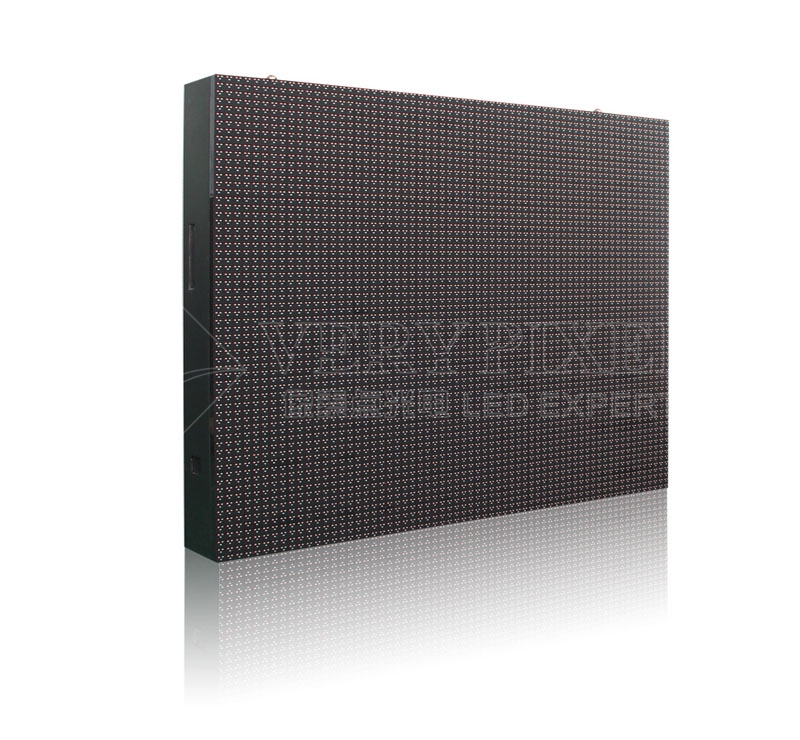

Cabinet Size(W*H*D) 1024*768*160(mm)  P16 outdoor full color 2R1G1B LED Display
Cabinet Resolution 64dot*48dot for real
Module Quantity 12 pcs
Cabinet Pixels 3072 dots
Pixel Density 2500 dot/sqm
Avg. Power Consumption 250W/sqm
Max. Power Consumption 800W/sqm
Material Iron or Aluminum
Cabinet Weight 65KG for iron cabinet;
45KG for aluminum cabinet


Screen Parameters

Brightness ≥5500cd/sqm
Contrasts (Max. /Min.) 1.1:1
Driving Method Static
View Angle Horizontal 120° Vertical 60°
Optimal Viewing Distance 15m to 400m
Brightness Control Red, Green and Blue 256 Grade/Each
Fresh Frequency ≥600Hz
Frame Frequency 50 - 60Hz
Input Voltage AC220V/50Hz or AC110V/60Hz
Defects Rate ≤0.00001
Screen Weight ≤65kg/sqm for Iron cabinet /45kg/sqm for Aluminum cabinet
MTBF >10,000 hours
Life Span ≥100,000 hours
Brightness Uniformity <3%
Earth Leakage Current <3mA
Protective Grade IP65
Temperature-operating ﹣40℃~60℃
Humidity-operating 10%~90%
Operating System  Windows98/me/2000/NT/XP/win7
