• P1.667 Ultra Small LED Screen
  • Type:Small Pitch LED Display
  • Model:VP-HD-I1.667
  • Hits:10240
  • Available applications:
    indoor advertising, HD video player

    rental business and so on.

    Project Case>>>

Tag: PH1.667mm Ultra Small LED Screen, 4K HD indoor LED display, LED HD electronic video display


Product Features






high grayscale small pitch led display

large viewing angle small pitch HD led display


High resolution brings delicate display effect, and it is a perfect embodiment of the new generation of ultra-high-definition LED display technology. Pixel pitch is 1.667mm.
Adopt high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider
Industrially advanced spectral radiance meter CS-2000 which has luminance and chromaticity accuracy which are 30 times industrial level, and is used for calibrating the luminance and chromaticity of each LED lamp to achieve more than 99% highly unified consistency;
Display screen can be spliced into any size and any direction, multi-standard video formats are available, easily realize Full HD and 4K video effect; screen performance is unique.

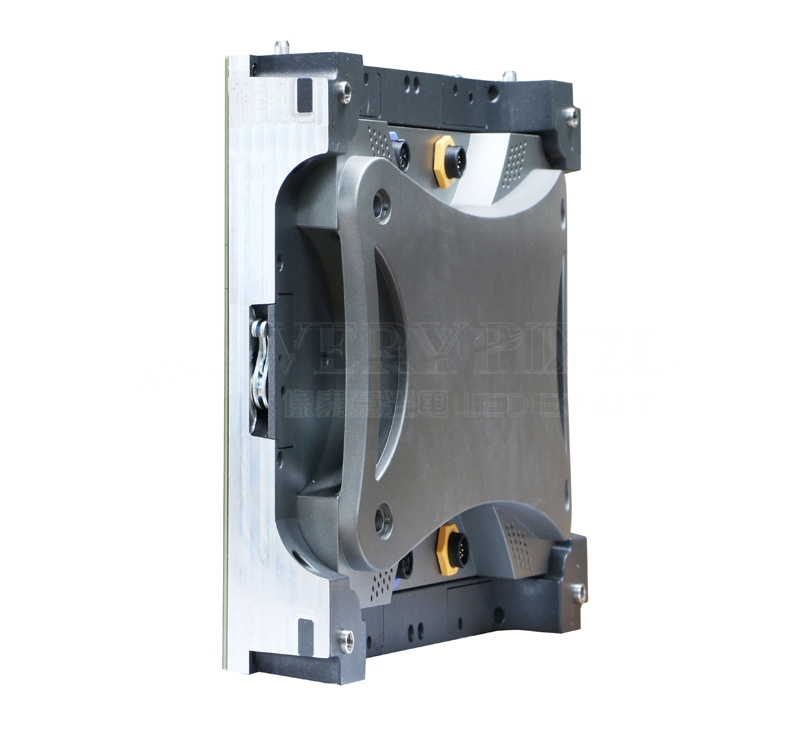

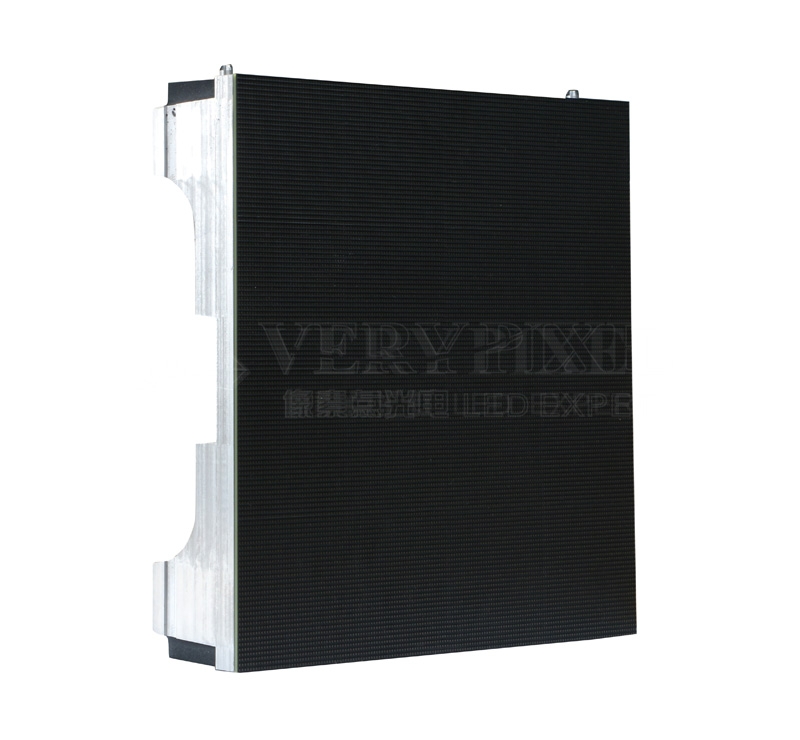

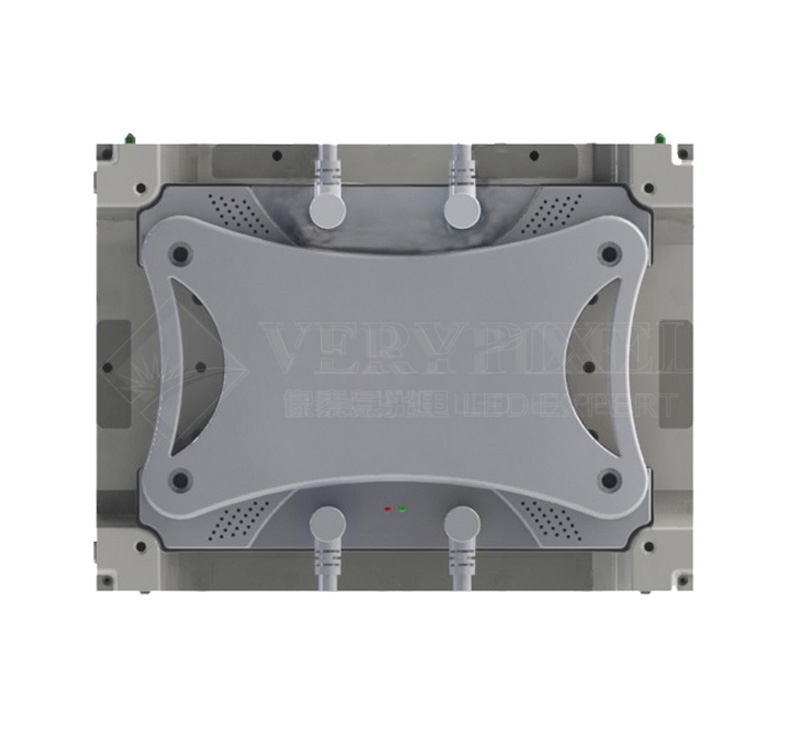

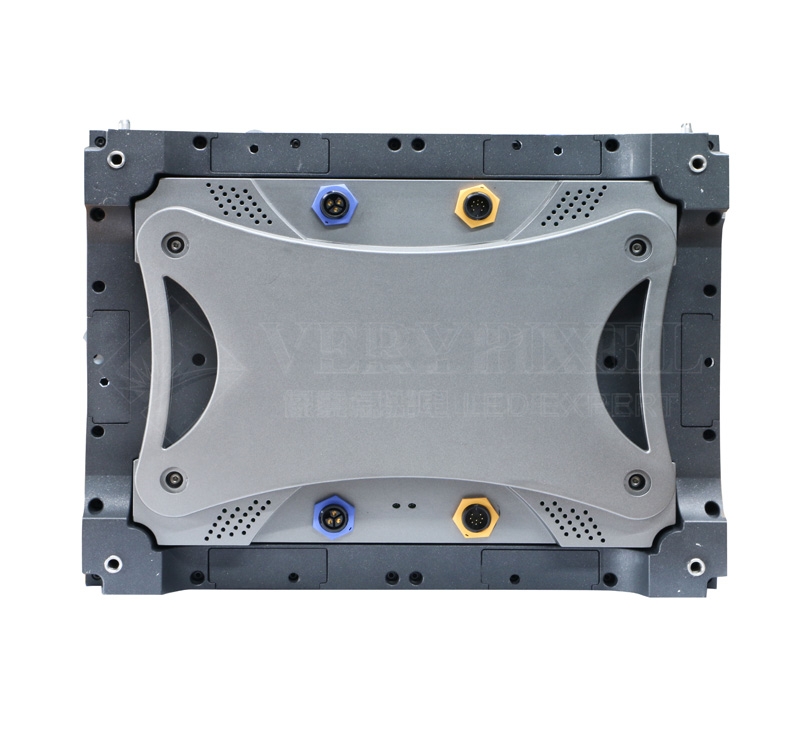

Cabinet Structure


PH1.667mm Ultra Small LED Screen

PH1.667mm Ultra Small LED Screen


Product Parameters


Item

Specification

module

Led type

SMD 3 IN 1

Pixel pitch (mm)

1.667

Module resolution (W X H)

120×180

Module dimensionmm

200W×300H

Module weightkg

0.4

Module power consumptionW

70

cabinet

Module quantityW×H

2 ×1

Cabinet resolutionW×H

240×180

Cabinet dimensionmm

400W×300H×66D

Cabinet aream2

0.12

Cabinet weightkg

4.6

Pixel densitydot/m2

360000

Cabinet flatnessmm

≤ 0.2

Maintenance

Back Access

Cabinet material

Die-casting Aluminum

Optical parameters

Single-point brightness correction

available

Single-point color correction

available

Brightnessnits

≥1000color temperature 6500K

Color temperatureK

3200—9300 adjustable

Viewing angle (Horizontal/Vertical)

160/160

Luminous point center distance deviation

<3%

Color uniformity

≥ 97%

Contrast ratio

4000:1

Electrical parameters

Max power consumption

150 W/cabinet; 1200 W/m2

Average power consumption

35 W/cabinet; 300 W/m2

Voltage range

AC90~264V47-63Hz

Security Features

GB4943/EN60950

Processing performance

Frame RateHz

50/60 Hz

Drive mode

Constant Current Driver1/30 scanning

Gray levels

16384

Refresh rateHz

≥2000

processing

16 bit

Module comes with power failure

Save luminance, Color correction, module data

Video playback capability

2K, 4K Ultra-high-definition video

Use parameter

Life timehrs

50,000H

Operating temperature / humidity

-10 – 40 / 10%-80%RHnon-condensing

Storage temperature / humidity

-20 – 60 / 10%-85%RHnon-condensing

Certification

CCCTUV-CEETL, etc
