• VP-Mesh LED Display Series
  • Type:LED Media Facade
  • Model:VP-Mesh
  • Hits:15373
  • Available applications:
    Stage background, bars, casinos,

    ceiling decoration, building roof installation etc.

    Project Case>>>

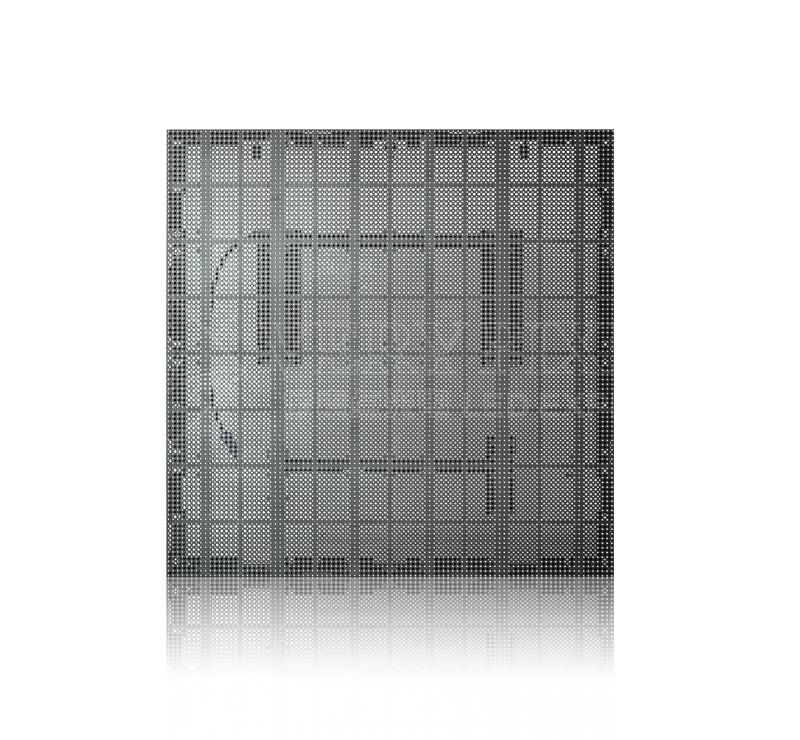

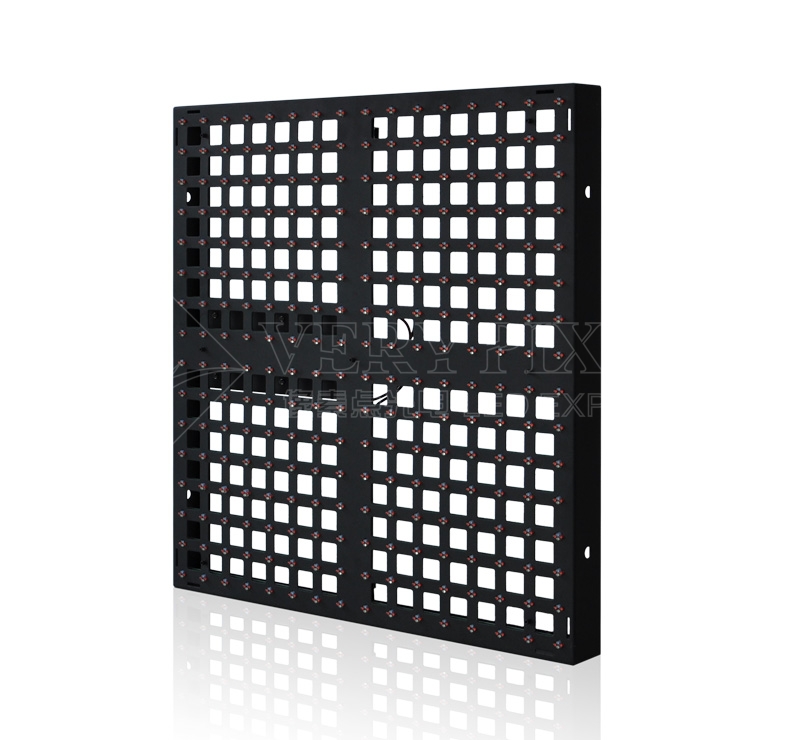

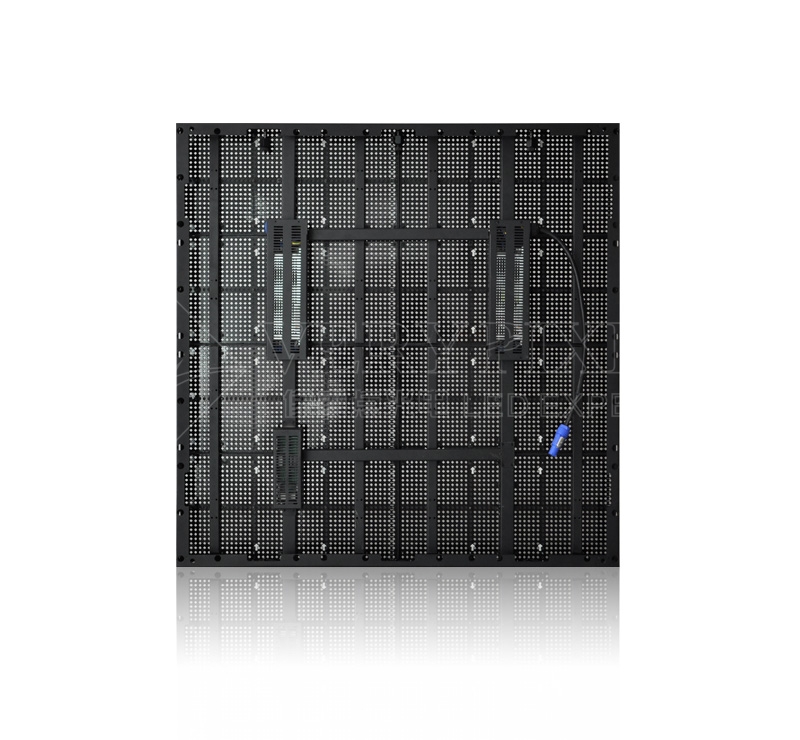

LED Mesh Display

Tag: Strip LED Display, Curtain LED Display, indoor LED mesh manufacturer, LED stage background, LED curtain screen outdoor, indoor full color mesh display
● LED Mesh Display, the design has the features of "light","thin", "exquisite", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
● This product has been applied in many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
● The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it offers great expressive color.

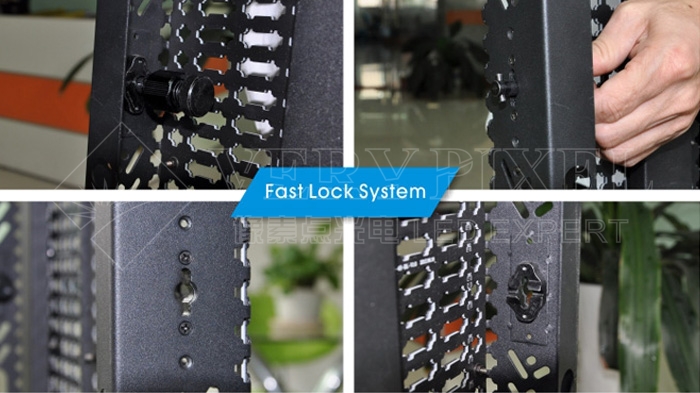

● Equipped with fast-lock connectors, the product is convenient to install & dismantle. Now it has become the most popular fashion elements at the digital stage and bar.
● High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effects.

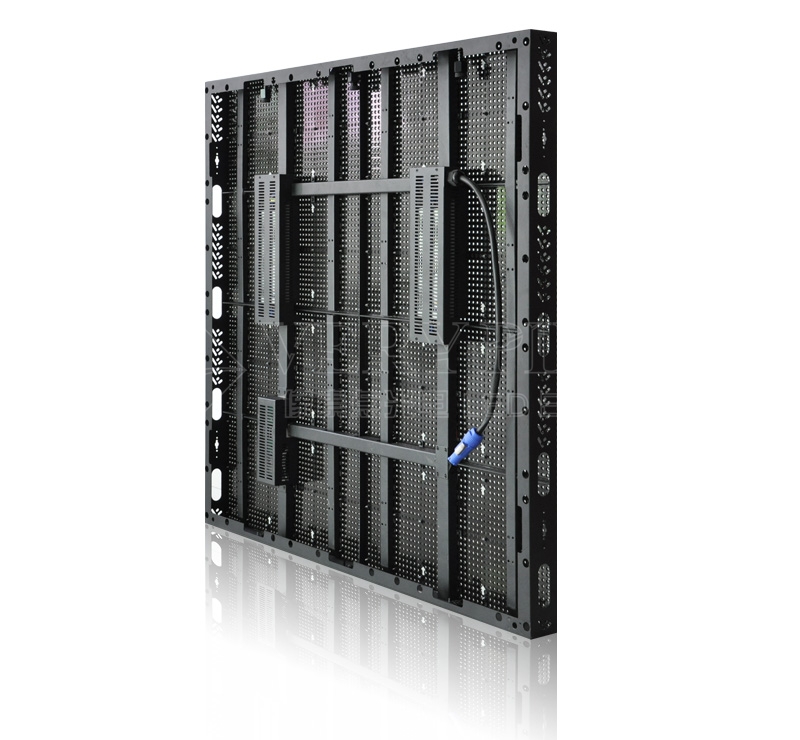

Ultra Slim & Light Weight







Neat structure with only 7kg/panel, 13kg/sqm

Customizable cabinet size available







































                                                                        Only 70mm thin

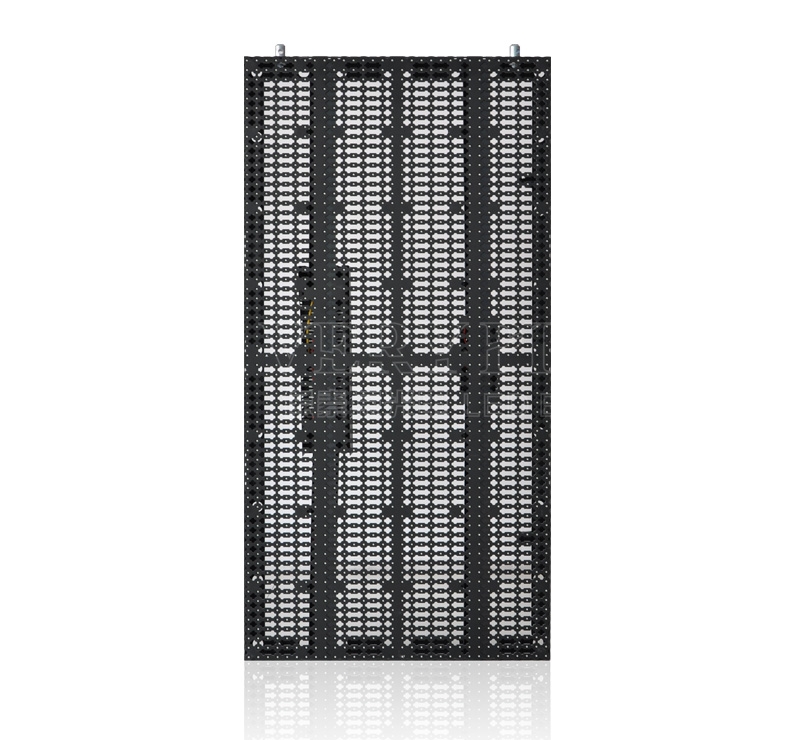

High Penetration Rate

Neat & Exquisite structure layout.
Penetration rate up to 65%.
Self-heat-sink design.

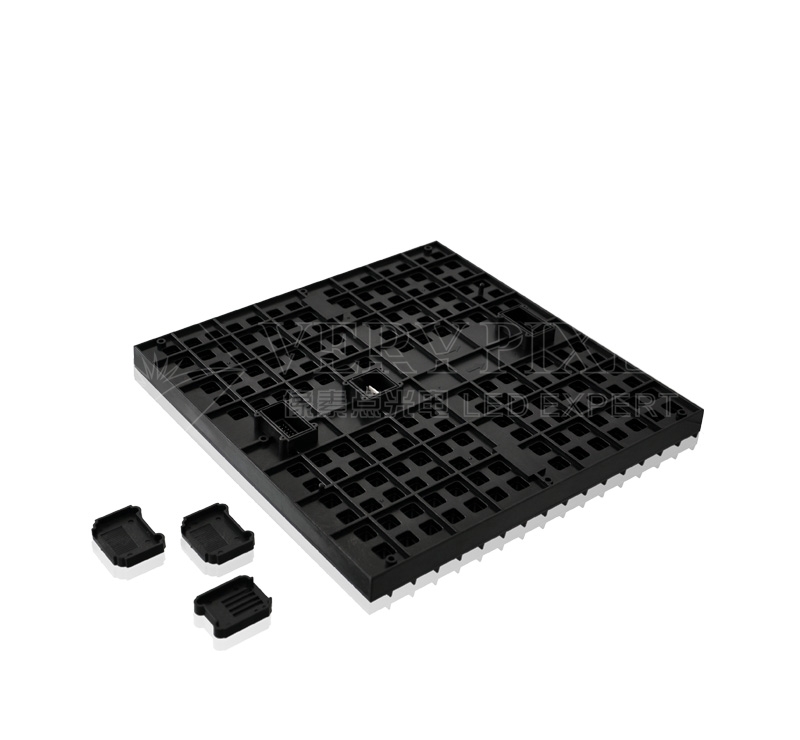

Assembly Convenient

LED Mesh Display


Product Line

MARKETED Cabinet Size PH Constitution Brightness Refresh Rate Cabinet Weight Protection
INDOOR 480*960mm P10 SMD 3528 1400 nits ≥800Hz 7Kg IP45
400*800mm P12.5 SMD 3528 1200 nits ≥800Hz 6.2Kg IP45
512*1024mm P16 SMD 3528 1000 nits ≥800Hz 7.5Kg IP45
OUTDOOR 1024*1024mm P16 DIP 1R1G1B 5000 nits ≥1200Hz 32Kg IP65
1000*1000mm P31.25 DIP 1R1G1B 2500 nits ≥1200Hz 35Kg IP65
960*960mm P40 DIP 1R1G1B 1800 nits ≥1200Hz 30Kg IP65

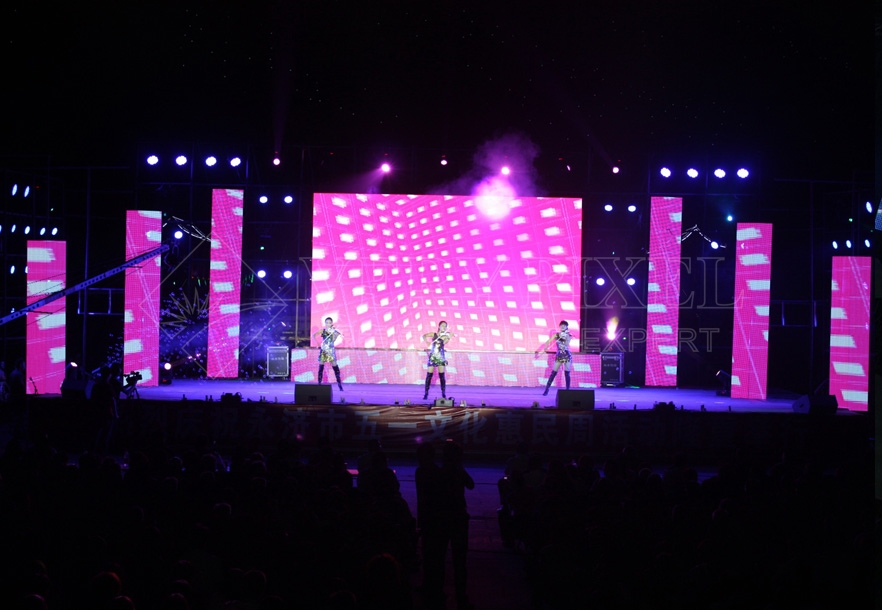

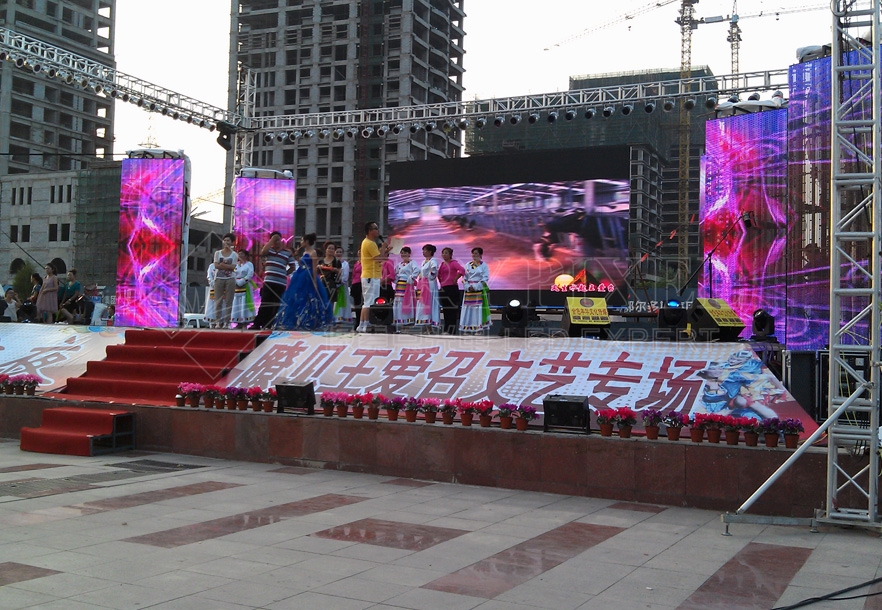

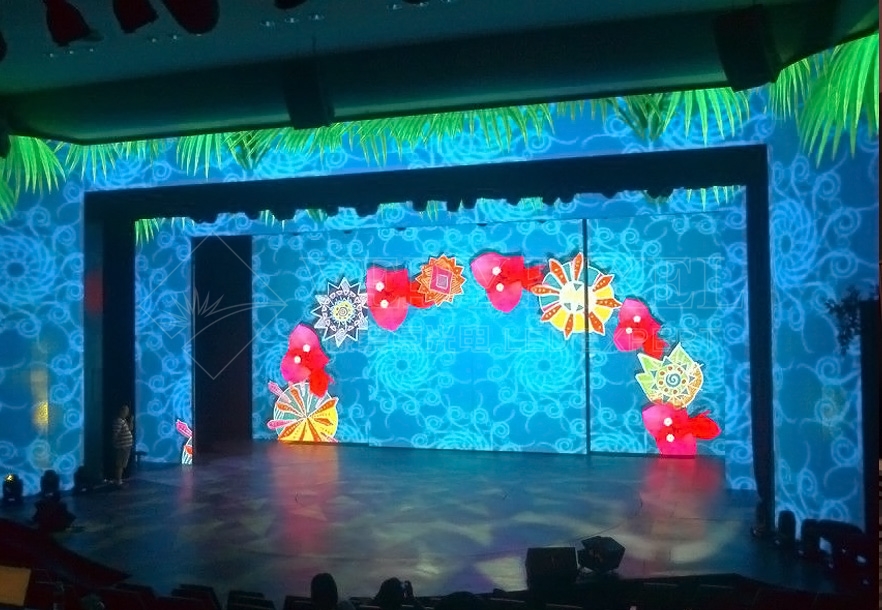

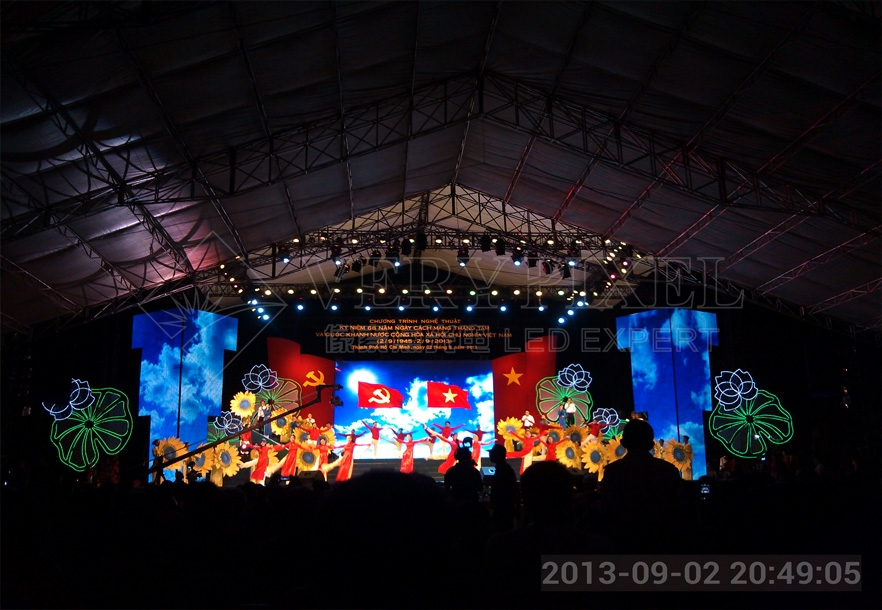

Customer Case


 LED Mesh Display  LED Mesh Display  LED Mesh Display  LED Mesh Display
VP-MESH-O10 VP-MESH-O16 VP-MESH-I12.5 VP-MESH-O16

Product Vedio
