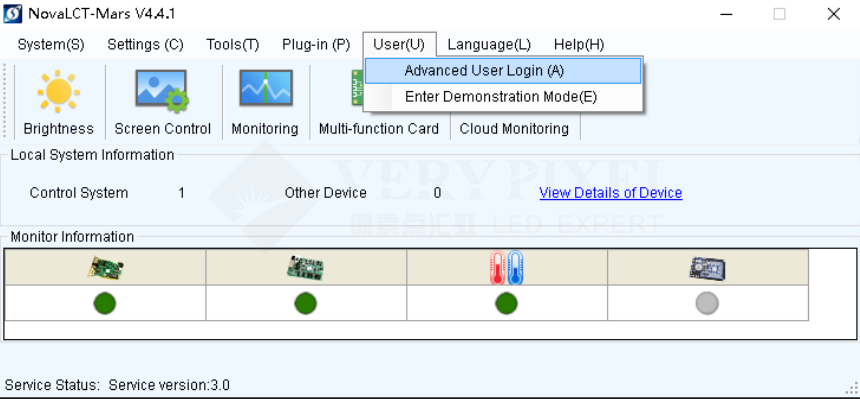

1.  Run NovaLCT-Mars, move the cursor over the  Advanced User Login (A) and click the button.

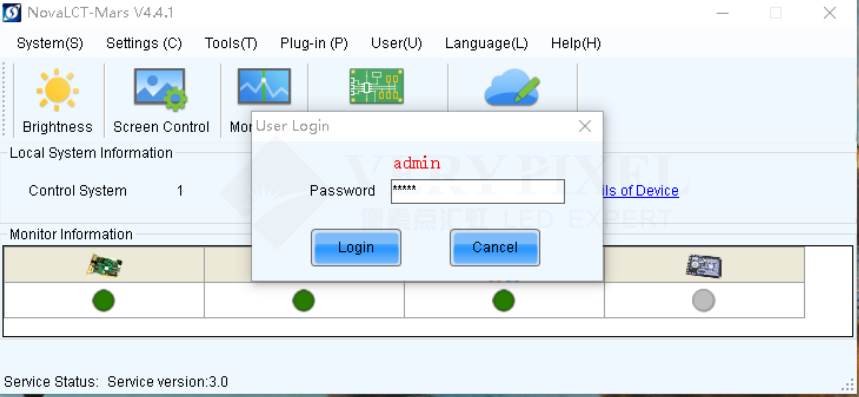

2. Login with the password “admin”.

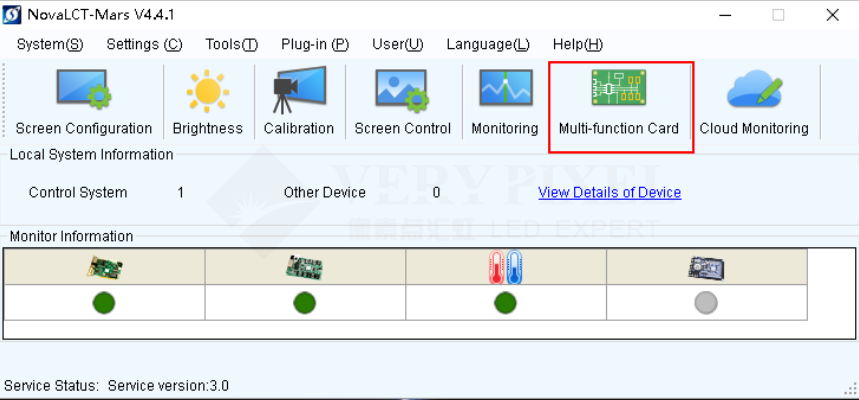

3. Click on the  Multi-function Card button.

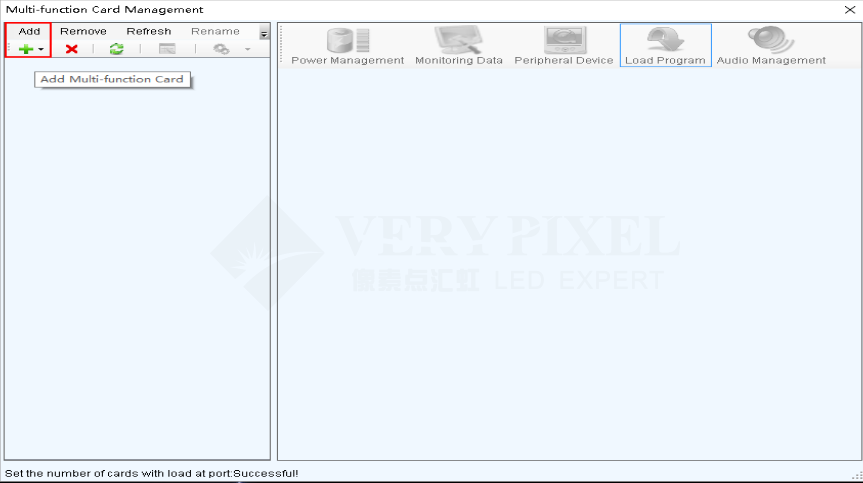

4. Click  Add to add function card and select its actual connectionmethod-function card is connected which Serial port or

    Ethernet port. Take the internet port as an example, select the sending card internet port 1 to be connected with the

    multifunction card.

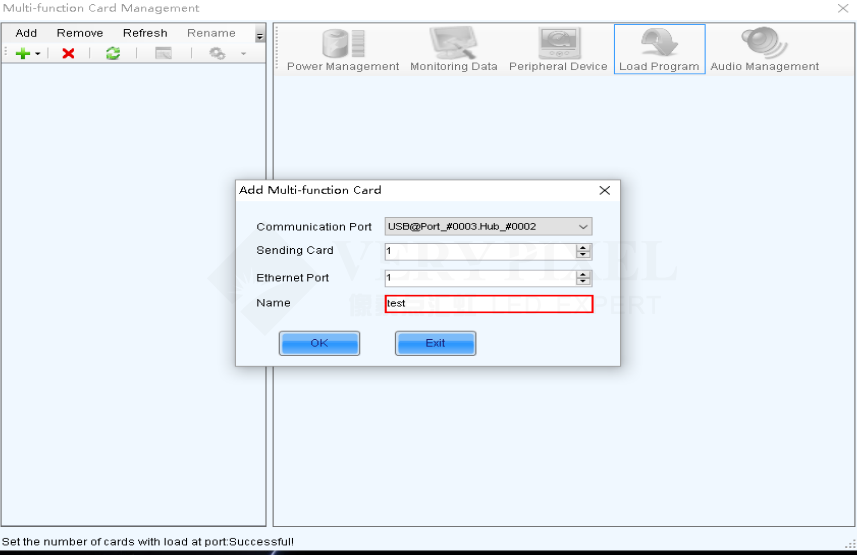

5. Rename the function card.

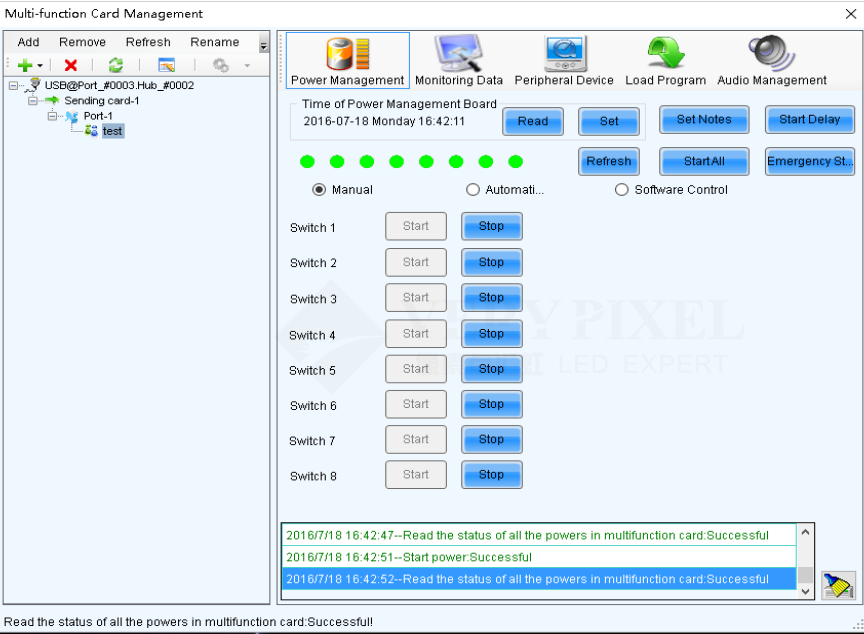

6. Function card is added successfully.

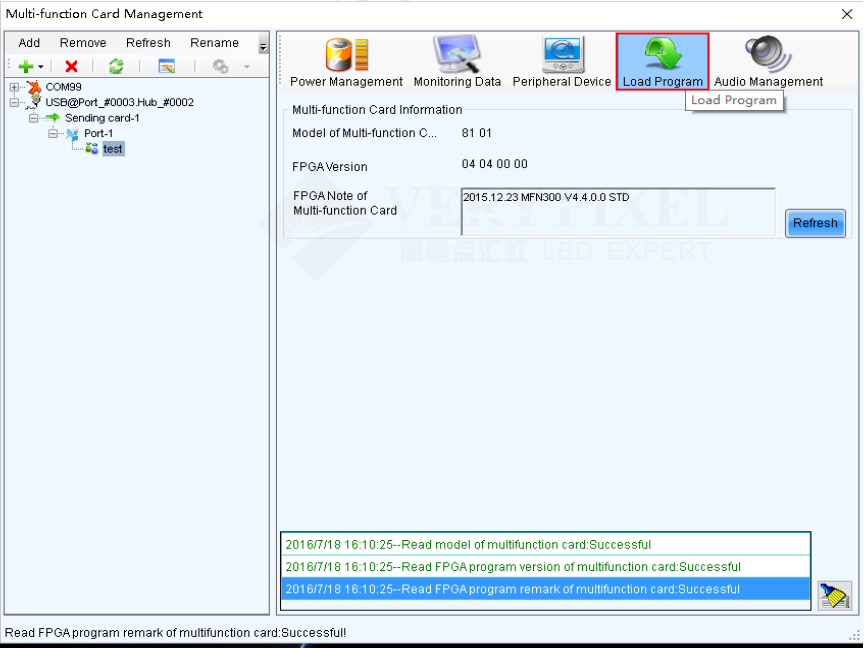

7. Click to select the  Load Program

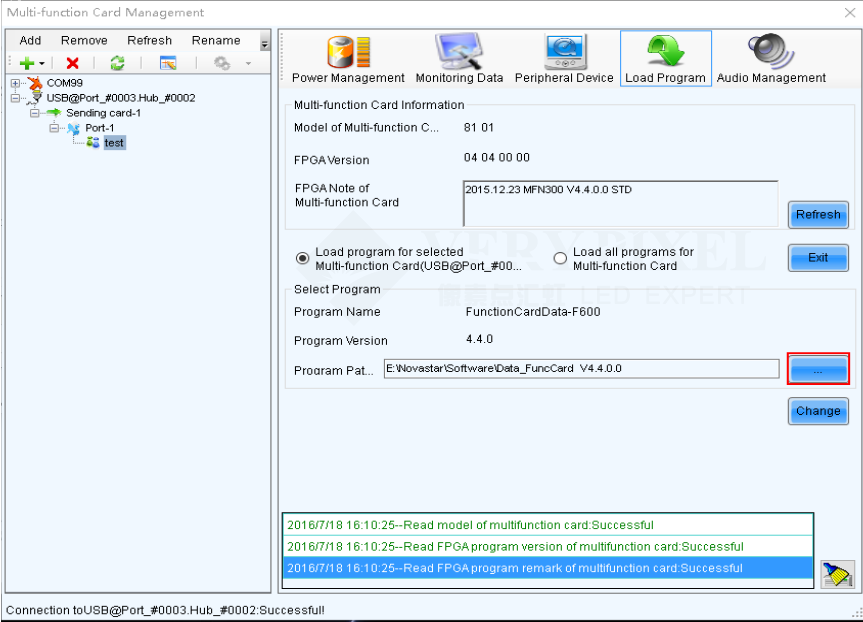

8. Type password ”admin” on this page and select new program, then click change icon , and click refresh button to check

     program version.

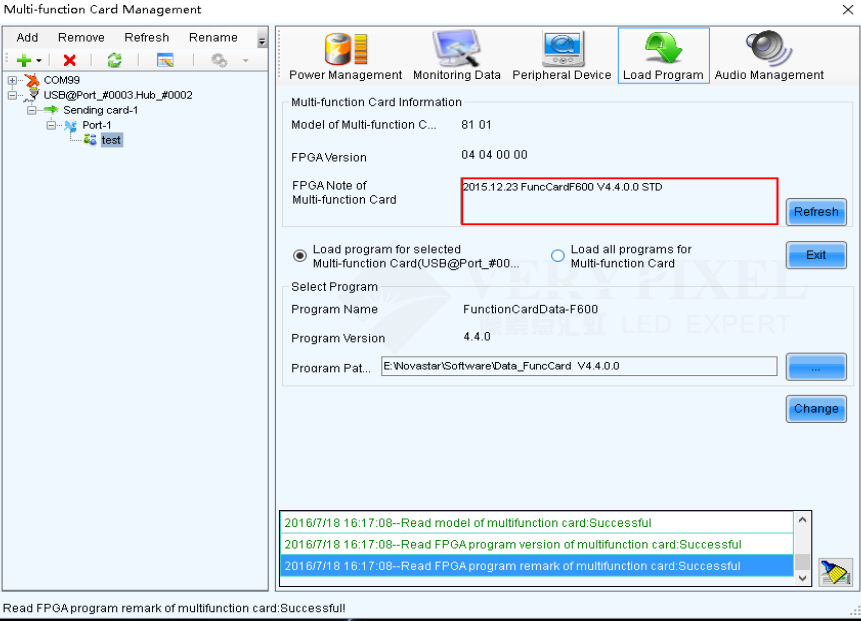

9. The hardware program version will show on the current page.
