• VP-MEGA Outdoor P25x50 LED media wall
  • Type:LED Media Facade
  • Model:VP-MEGA-O25x50
  • Hits:3043
  • Available applications:
    VP-MEGA is suitable for
    building decoration,
    theatre,
    shopping malls
    indoor/outdoor stage solution

Tag: P25x50 LED media wall, P25x50 Building RGB LED displays, P25x50 LED media facade



VP-MEGA-O25x50 is a new kind of display screen which integrated the advantages of the traditional screen-high resolution, high quality, high Grey level, and more lighter. Abandoned the disadvantages of the transmission issue cause by the signal interruption. It is the best choice for indoor and outdoor application.




VP-MEGA Characteristic

>> Good quality VP-MEGA , green products with low consumption.
>> Constant currency, long lifespan. >> Anti-static, thunder proof.
>> Working environment:-30°C to 60°C
>> Standard IP67 protective design, meet requirements for severe circumstance.



VP-MEGA Material

>> Adopt good quality aluminum for the body,two times oxidation treatments.
>> Connector plated by gold, lowest electric resistance, high antioxidant ability.
>> High ability of water proof and air corrosion, the adaptability of high temperature is strong.
>> Fixed by stainless screw with beautiful appearance and, rust proof.

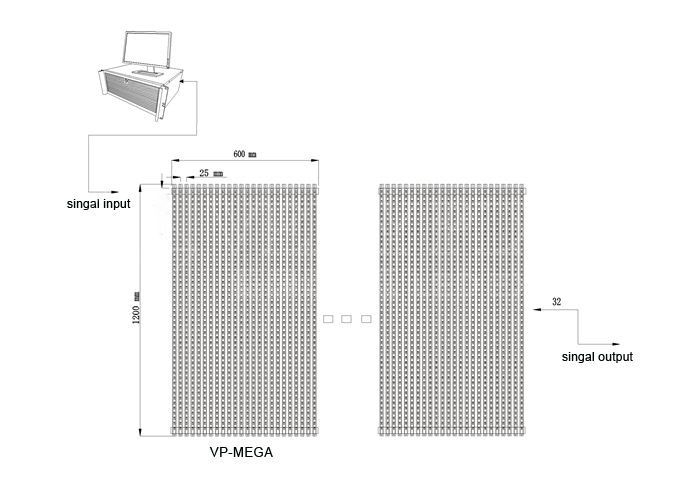

VP-MEGA Topology

VP-MEGA LED media wall

VP-MEGA Installation

VP-MEGA LED media wall installation

Screen Parameters

Name VP-MEGA 25*50
Unit size 1200mm*600mm
Pixel pitch 25*50mm
Light color 1R1G1B SMD
Density 800Pix/ m2
Driving IC MBI5041
Seal IC Epistar/CREE
Control Online real time display system
Weight 9.3kg/ m2
Unit area 0.72 m2
Max power 175W/ pcs
Brightness ≥2240cd
Resolution 576pix/ pcs
Unit pixel 48pix*12pix/unit
Driving mode Static, constant currency
Frame rate 15 to 75Hz
Refresh rate ≥5000Hz
Grey Level 16bits*16bits*16bits
Color change 16777216
Lifespan ≥50,000h
Voltage AC220V
Protective level IP67
Humidity ≥20%-95%RH
Light transmission rate ≥79%
Working temperature -20°C to +70°C
